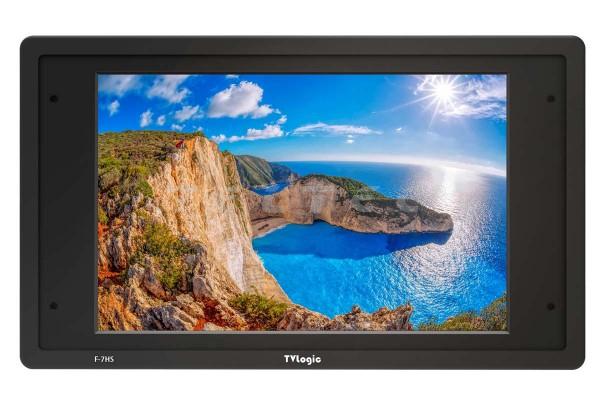

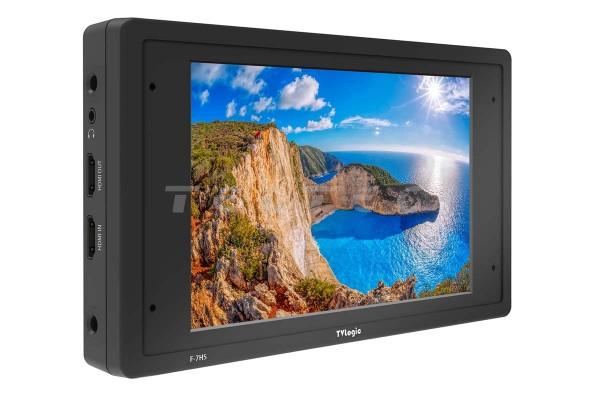

TVLogic F-7HS
7" LCD Field Monitor (1920×1080)
Article number: 12304775
€1,895.00
Gross:€2,255.05
Der TVLogic F-7HS ist ein 7" LCD Monitor mit 1920 x1080 Auflösung und... more
Product information "TVLogic F-7HS"
Der TVLogic F-7HS ist ein 7" LCD Monitor mit 1920 x1080 Auflösung und 1x 3G/HD/SD-SDI- sowie1x HDMI-Ein-/Ausgang.
Hauptmerkmale
- 7" Full HD Auflösung (1920×1080)
- bis zu 1.500 cd/m² Helligkeit
- HDMI ↔ SDI Cross Conversion
- HDR Emulation (PQ, HLG, S-Log3)
- Benutzerdefinierter 3D LUT Import über USB-Stick
- verschiedene integrierte Kamera LUTs
- ARRI Metadaten
- herausragende Schärfe
- Waveform / Vectorscope
- H/V Flip
- Marker
- Split Zoom
- 16ch Audio Level Meter
- Anamorphic Desqueeze
- Timecode Display
- Luma(Y’) Zone Check
- Screen Tally
Lieferumfang
- 1x TVLogic F-7HS
- 1x D-Tap-Kabel
- 1x Kamerahalterung
Garantie
- 2 Jahre Herstellergarantie
Technische Daten
Allgemein |
|
Größe | 7" |
Auflösung | 1920 x 1200 (16:10) |
Pixelpitch | 0,0787 (H) x 0,0787 (V) mm |
Farbtiefe | 1,073 Milliarden Farben (10-Bit) |
Blickwinkel | 160°(H) / 160°(V) |
Helligkeit (maximal) | 1500 cd/m² |
Kontrastverhältnis | 1200:1 |
Anzeigebereich | 151.2(H) x 94.5(V) mm |

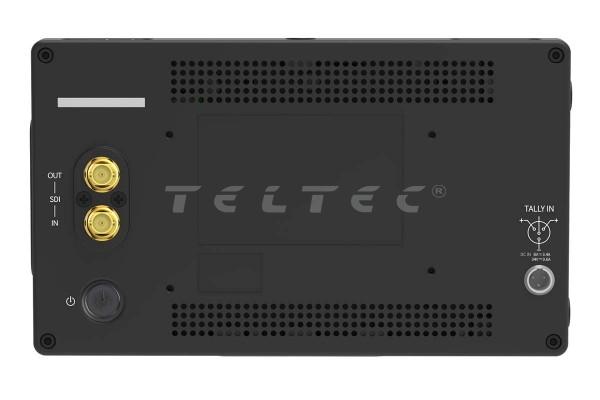

Eingänge |
|
1x BNC | SDI Eingang |
1x HDMI | HDMI Eingang |
Ausgänge |
|
1x BNC | SDI Ausgang (SDI Loop-Out, HDMI-zu-SDI-Konvertierungsausgang) |
1x HDMI | HDMI Ausgang (HDMI Loop-Out, SDI-zu-HDMI-Konvertierungsausgang) |
Eingangssignal |
|
3G-SDI | 2,970 Gb/s |
HD-SDI | 1,485 Gb/s |
SD-SDI | 270 Mbps |
HDMI | 1080p(60)/1080i(60)/720p(60)/480p(60)/576p(50) |
SDI-Eingangssignalformat |
|
SMPTE ST-425M-A/B | 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) 1080i(60/59.94/50) |
SMPTE ST-274M | 1080p (30/29.97/25/24/24sF/23.98/23.98sF) 1080i (60/59.94/50) |
SMPTE ST-296M | 720p (60/59.94/50) |
SMPTE ST-125M | 480i (59.94) |
ITU-R BT.656 | 576i (50) |
Weitere Spezifikationen |
|
Audio Eingang | SDI Embedded Audio (Gruppiert, Kanäle sind wählbar)) |
Audio Ausgang | Externer Ausgabeanschluss (3,5 mm Klinkenstecker) |
Strom | DC 12 V 1.8 A |
Abmessungen | 211 x 125 x 28,3 mm (ohne Ständer) |
Gewicht | 0,76 kg |
