TVLogic LUM-095G
9" 4K/UHD LCD Monitor
Article number: 12304771
€4,043.60
Gross:€4,811.88
MSRP*: €4,895.00
Promotion
-17%
Leasing:*
mthly €76.71
Der TVLogic LUM-095G ist ein 9" Multi-Purpose Monitor mit Full HD (1920x1080) Auflösung... more
Product information "TVLogic LUM-095G"
Der TVLogic LUM-095G ist ein 9" Multi-Purpose Monitor mit Full HD (1920x1080) Auflösung und 2x 12G/6G-SDI- bzw. 4x 3G-SDI Ein- und Ausgängen sowie 1x HDMI 2.0 (4K 60p)-Eingang.
Hauptmerkmale
- 9" FHD Panel + 4K Schnittstelle
- 12G-SDI Single Link 4K/UHD
- 3G-SDI Quad-Link Square Division & 2-Single Link 4K/UHD
- HDR Emulation (PQ, HLG, S-Log3)
- Benutzerdefinierte 3D-LUT, Import über USB-Stick
- diverse integrierte Kamera LUTs
- Waveform / Vectorscope
- 16ch Audio Level Meter
- Focus Assist
- Marker
- Timecode Display
- Dynamic UMD
- Blue/Mono Only
- Various Aspect
- Luma(Y’) Zone Check
- Closed Caption (CC-608, CC-708)
- H Flip & V Flip (Auto & Manuell)
Lieferumfang
- 1x TVLogic LUM-095G
- 1x AC-Netzkabel
- 1x DC-Netzadapter
- 1x Tragegriff
- 1x Tischständer
- 1x Kamerahalterung
Garantie
- 2 Jahre Herstellergarantie
Technische Daten
Allgemein |
|
Größe | 9" |
Auflösung | 1920 x 1080 (16 : 9) |
Pixelpitch | 0,1035 x 0,1035 mm |
Farbtiefe | 16.7M Colors(True 8bit) |
Blickwinkeltyp | 178 ° (H) / 178 ° (V) |
Helligkeit (maximal) | 400 cd/m² |
Kontrastverhältnis | 750:1 |
Anzeigebereich | 198,72 x 111,78 mm |

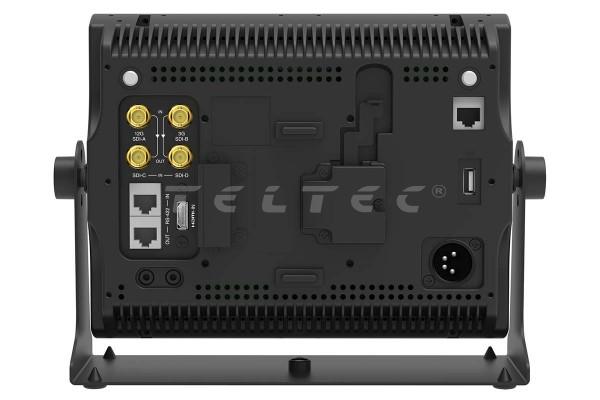

Ein-/Ausgänge |
|
SDI-A | 12G/6G/3G/HD/SDI Input |
SDI-B | 3G/HD/SD-SDI Input |
SDI-C | 3G/HD-SDI Input (nur für Quad-Link 4K/UHD Input) oder 12G/6G/3G/HD/SDI Output (Passive Through Out) |
SDI-D | 3G/HD-SDI Input (nur für Quad-Link 4K/UHD Input ) oder 3G/HD/SD-SDI Output (Passive Through Out) |
HDMI | 1x HDMI 2.0 Eingang |
Eingangssignal |
|
12G-SDI | 12 Gb/s |
6G-SDI | 6 Gb/s |
3G-SDI | 2,970 Gb/s |
HD-SDI | 1,485 Gb/s |
SD-SDI | 270 Mbps |
HDMI | 2160p(60)/ 1080i(60)/720p(60)/480p(60)/576p(50) |
SDI-Eingangssignalformat |
|
SMPTE ST-2082 | 2160p (60/59.94/50) |
SMPTE ST-2081 | 2160p (30/29.97/25/24/23.98) |
SMPTE ST-425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) 1080i (60/59.94/50) |
SMPTE ST-274M | 1080p (30/29.97/25/24/24sF/23.98/23.98sF) 1080i (60/59.94/50) |
SMPTE ST-296M | 720p (60/59.94/50) |
SMPTE ST-260M | 1035i (60/59.94) |
SMPTE ST-125M | 480i (59.94) |
ITU-R BT.656 | 576i (50) |
Weitere Spezifikationen |
|
Audio Eingang | Embedded Audio / Analog Stereo (Klinkenstecker) |
Audio Ausgang | Interner Lautsprecher (Mono) / Analog Stereo (Klinkenstecker) |
Strom | DC 12 V / 24 V AC |
Abmessungen | 223 x 175 x 60 mm (ohne Ständer) |
Gewicht | 2,14 kg |
Consultation
Media
Related links to "TVLogic LUM-095G"
The following info about the manufacturer is available...... more
TVLogic
TVlogic ist ein führender Entwickler und Hersteller von High-Performance 4K, FullHD und HD-Video Equipment für den digitalen Rundfunk und professionellen Videomarkt.
Gegründet im März 2002, setzt TVlogic konsequent auf Qualität und Stabilität. Die überragende Bildqualität der High-End-Geräte für Broadcast basiert auf der von TVlogic entwickelten Technologie.
