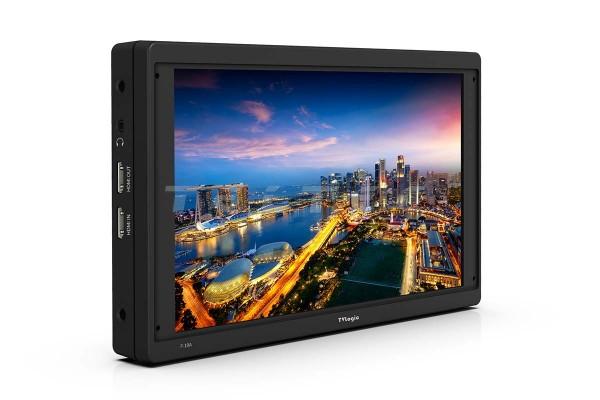

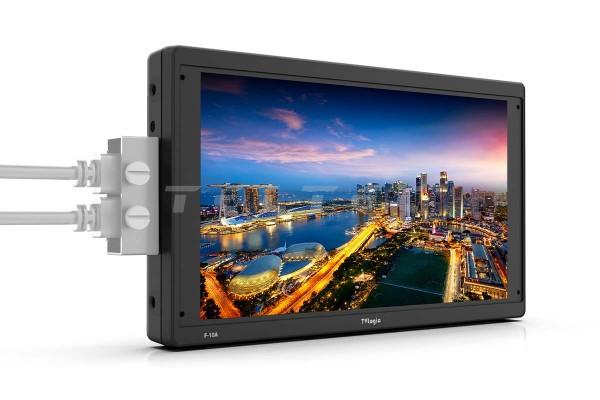

TVLogic F-10A
10" FullHD Monitor
Article number: 12286198
€2,068.00
Gross:€2,460.92
MSRP*: €2,095.00
Leasing:*
mthly €39.23
Der TVLogic F-10A ist ein 10" LCD Field Monitor mit FullHD Auflösung und 300 cd/m²... more
Product information "TVLogic F-10A"
Der TVLogic F-10A ist ein 10" LCD Field Monitor mit FullHD Auflösung und 300 cd/m² Helligkeit. Der Monitor besitzt umfangreiche Schnittstellen mit Cross-Konvertierung.
Hauptmerkmale
- 10" LCD Field Monitor
- FullHD Auflösung und 300 cd/m² Helligkeit
- HDR-Emulation: HLG, Slog3 und PQ
- benutzerdefinierter 3D-LUT Import
- Assistenztools: Wellenform/Vektorskop-Darstellung
- 2x SDI und 1x HDMI Eingang
- 1x SDI und 1x HDMI Ausgang
- Cross-Konvertierung der SDI/HDMI Eingänge
Lieferumfang
- 1x TVLogic F-10A
- 1x D-Tap Kabel
- 1x Kamerahalterung
- 1x L-Typ BNC-Anschluss
Im Lieferumfang ist kein Screen Protector enthalten
Technische Details
Allgemein |
|
Größe | 10" |
Auflösung | 1920 x 1080 (16 : 9) |
Pixelabstand | 0,11475 mm |
Farbtiefe | 16,7 Millionen Farben |
Blickwinkel | 160° (H) / 160° (V) |
Leuchtdichte (maximal) | 300 cd/m² |
Kontrastverhältnis | 1000:1 |
Display | 220,32 mm (H) x 123,93 (V) mm |
Eingang |
|
2x BNC | 3G-SDI (1x I/O wählbar) |
1x HDMI | HDMI 2.0 Eingang |
Ausgang |
|
2x BNC | 3G-SDI (1x I/O wählbar) HDMI zu SDI Crossconversion |
1x HDMI | HDMI 1.3 Output, SDI zu HDMI Crossconversion |
Eingangssignal |
|
3G-SDI | 2,970 Gb/s |
HD-SDI | 1,485 Gb/s |
SD-SDI | 270 Mb/s |
HDMI | 2160p (60/30) 1080p (60/59,94/50/30/25/24/23,98) 1080i (60/59,94/50) 720p (60/50) 480i (60) 480p (60) 576i (50) 576p (50) |
Weitere Spezifikationen |
|
Audio Eingang | eingebetteter Ton |
Audio Ausgang | Analog Stereo 3,5mm Klinkenanschluss |
Strom | DC 12 V 1,2 A / 34 V 0,4 A |
Leistungsaufnahme | 14 W (Maximal) |
Betriebstemperatur | 0°C bis 45°C |
Abmessungen | 258 x 154 x 29,8 mm |
Gewicht | 1,3 kg |
