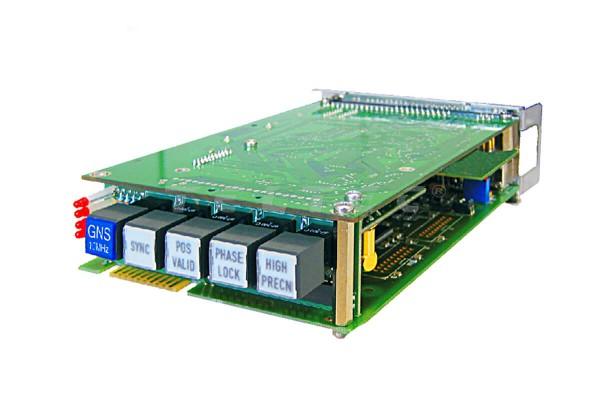

Plura GNS10 - Modul für Rubidium 1
GPS/GLONASS/QZSS double receiver with 10 MHz
Article number: 12288120
Das GNS 10 MHz Modul zeichnet sich durch ohe Genauigkeit und Zuverlässigkeit aus. Als... more
Product information "Plura GNS10 - Modul für Rubidium 1"
Das GNS 10 MHz Modul zeichnet sich durch ohe Genauigkeit und Zuverlässigkeit aus. Als Multi-GNSS Empfänger kann das Gerät weltweit Signale von unterschiedlichen Systemen empfangen. Das Modul ist somit die ideale Referenz für unterschiedliche Synchronisationszwecke, sei es als Zeitreferenz für Broadcast Systeme, wie z. B. für Video- und Timecode-Generatoren, für Computer, oder auch als Signalgenerator (Phasen- und Frequenzreferenz) für Anwendungen in der Industrie, Forschung und Messtechnik.
Hauptmerkmale
- Multi-GNSS-Empfänger: GPS (US-System), GLONASS (russiches System), Galileo (europäisches System), Kompass (chinesisches System), QZSS (japanisches System), SBAS (WAAS, EGNOS, MSAS)
- ausgestattet mit einem zweiten Antenneneingang und einem zweiten Empfänger als Option
- automatische Umschaltung möglich
- Präzisionszeit über hochstabilen OCXO
- IRIG-B Output
- präziser Holdover-Modus
- Trigger-Ein-/Ausgänge mit sub-microsecond Auflösung
- Eingang für Notstromversorgung
- Alarm-Ausgang
- SNMP-ready
- Hot Swappable
Lieferumfang
- 1x Plura GNS10 - Modul für Rubidium 1
Technische Daten
Eingangsspannung | 16 - 30 V DC |
Energieverbrauch | 5 W |
Betriebstemperatur | 5 °C bis 40 °C |
Relative Luftfeuchtigkeit | 30 % bis 85 % |
Maße | 103 x 44 x 165 mm |
Gewicht | 500 g |
Consultation
Media
Related links to "Plura GNS10 - Modul für Rubidium 1"
The following info about the manufacturer is available...... more
Plura
Plura ist spezialisiert auf hochleistungsfähige multifunktionale HD- und SD-LCD-Videomonitore und Timing/Synchronisationsgeräte.
