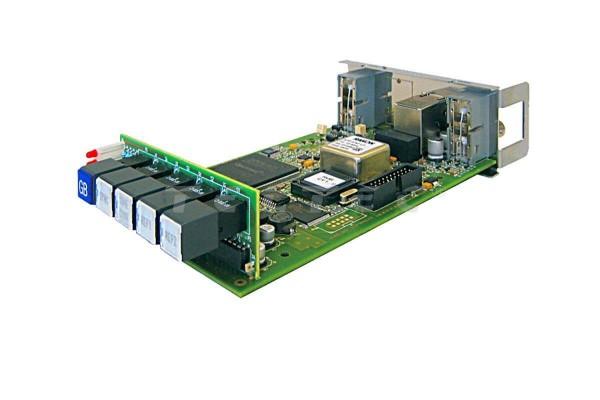

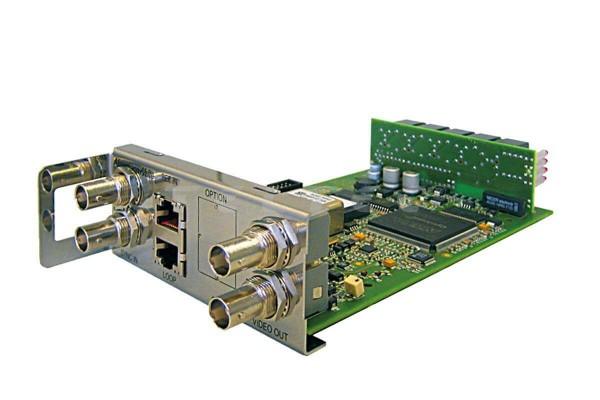

Plura GB - Modul für Rubidium 1
Master Blackburst Generator
Article number: 12288118
€1,975.00
Gross:€2,350.25
Das GB-Modul aus der RUBIDIUM-Serie dient als vielseitiger Master- Black Burst und Tri-Level... more
Product information "Plura GB - Modul für Rubidium 1"
Das GB-Modul aus der RUBIDIUM-Serie dient als vielseitiger Master- Black Burst und Tri-Level Generator. In Kombination mit einer Systemreferenz liefert das GB Modul hochgenaue, analoge Videosignale.
Hauptmerkmale
- hochpräziser analoger Black Burst
- Tri-Level Generator (PAL, NTSC, HDTV)
- zwei Videoausgänge
- interner Referenzoszillator
- synchronisiert auf 10 MHz
- synchronisiert auf PPS
- SNMP-Funktionen
- Synchronisation redundanter Studio-SPGs mit analogem Video
- Sicherung des Studiotaktes auch bei Signalausfall
- Verteilung von Black Burst und Tri-LEvel als kompaktes System
- Konfiguration und Software-Updates über USB-Port
Lieferumfang
- 1x Plura GB - Modul für Rubidium 1
Technische Daten
Video Output 1+2 |
|
Schnittstelle | BNC (IEC169-8), 75 Ohm |
Format | HDTV 720p23.98, HDTV 720p24, HDTV 720p25, HDTV 720p29.97, HDTV 720p30, HDTV 720p50, HDTV 720p59.94, HDTV 720p60, HDTV 1035i29.97 or psf, HDTV 1035i30 or psf, HDTV 1080i23.98 or psf, HDTV 1080i24 or psf, HDTV 1080i25 or psf, HDTV 1080i29.97 or psf, HDTV 1080i30 or psf, HDTV 1080p23.98, HDTV 1080p24, HDTV 1080p25, HDTV1080p29.97, HDTV 1080p30 |
PPS In |
|
Eingangsimpedanz | 100 kOhm |
Input "Low" | -2 bis 1,7 V |
Input "High" | 2,8 bis 12 V |
RXD In |
|
Eingangsimpedanz | > 30 kOhm |
Input "Low" | -15 bis 1 V |
Input "High" | 2,8 bis 15 V |
Frequenz | 0 bis 1 MHz |
Allgemein |
|
Betriebsspannung | 12 - 30 V DC |
Energieverbrauch | Max. 4 W |
Relative Luftfeuchtigkeit | Betrieb: 30 % bis 85 % Lagernd: 5 % bis 95 % |
Betriebstemperatur | 5 °C bis 40 °C |
Lagertemperatur | -10 °C bis 60 °C |
Maße | 165,1 x 104,1 x 43,2 mm |
Gewicht | 280 g |
