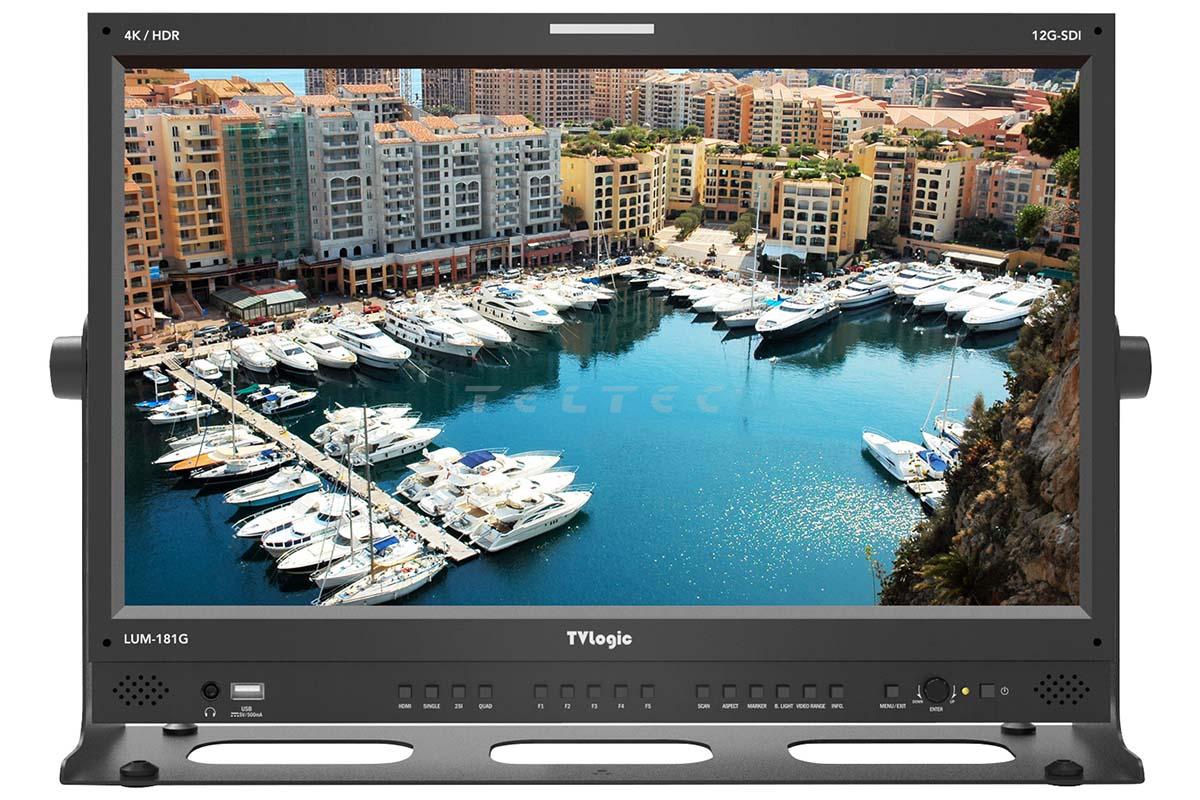

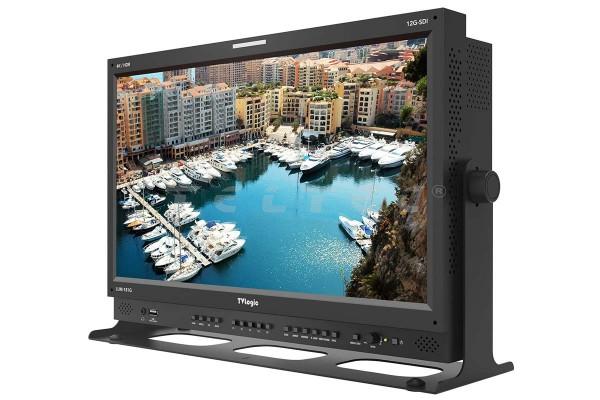

TVLogic LUM-181G
18.5" 4K Input-Ready Monitor LCD Monitor
Article number: 12304777
€4,043.60
Gross:€4,811.88
MSRP*: €4,925.00
Promotion
-18%
Leasing:*
mthly €76.71
Der TVLogic LUM-181G ist ein 18,5" LCD Monitor mit 1920 x1080 Auflösung... more
Product information "TVLogic LUM-181G"
Der TVLogic LUM-181G ist ein 18,5" LCD Monitor mit 1920 x1080 Auflösung und 2x12G-SDI, 2x6G-SDI, 4x3G-SDI-Ein-/Ausgängen sowie 1x HDMI 2.0 (4K 60p) Eingang.
Hauptmerkmale
- 18,5" Full HD Panel mit 4K Schnittstelle
- HDR Emulation (PQ, HLG)
- 12G-SDI Single Link 4K/UHD
- 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
- Waveform / Vectorscope
- 16ch Audio Level Meter
- Focus Assist
- Marker
- Timecode Display
- UMD Display
- Blue/Mono Only
- Various Aspect
- Luma(Y’) Zone Check
- Range Error
- Closed Caption (CC-608, CC-708)
- H/V Delay
- Tally
Lieferumfang
- 1x TVLogic LVM-246A
- 1x AC-Stromkabel
- 1x Ständer
- 1x Kappe für Bedienknopf
- 1x Tragegriff
Garantie
- 2 Jahre Herstellergarantie
Technische Daten
Allgemein |
|
Größe | 18,5" |
Auflösung | 1920 x 1080 (16:9) |
Pixelpitch | 0,213 (H) x 0,213 (V) mm |
Farbtiefe | 16,7 Millionen Farben (True 8-Bit) |
Blickwinkel | 178°(H) / 178°(V) |
Helligkeit (maximal) | 500 cd/m² |
Kontrastverhältnis | 1000:1 |
Anzeigebereich | 408,96 (H) x 230,04 (V) mm |
Eingänge |
|
4x BNC | 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel Eingang |
1x HDMI | HDMI (2.0) Eingang |
Ausgänge |
|
4x BNC | 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel (Active Through Out) |
Eingangssignal |
|
12G-SDI | 12Gb/s |
6G-SDI | 6Gb/s |
3G-SDI | 2,970 Gb/s |
HD-SDI | 1,485 Gb/s |
HDMI | 2160p(60)/1080p(60)/1080i(60)/720p(60)/480i(60)/480p(60)/576i(50)/576p(50) |
SDI-Eingangssignalformat |
|
SMPTE ST 2082 | 3840x2160 (60/50/30/25/24p) |
SMPTE ST 2081 | 3840x2160 (30/25/24p) |
SMPTE ST 2036-1:2009 | 3840×2160(23.98/24/25/29.97/30/50/59.94/60p) |
SMPTE ST-425M-A/B | 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) 1080i(60/59.94/50) |
SMPTE ST-274M | 1080p (30/29.97/25/24/24sF/23.98/23.98sF) 1080i (60/59.94/50) |
SMPTE ST-296M | 720p (60/59.94/50) |
SMPTE ST-260M | 1035i (60/59.94) |
SMPTE ST-125M | 480i (59.94) |
ITU-R BT.656 | 576i (50) |
SMPTE ST 2048-2:2011 | 2048x1080(23,98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p) |
Weitere Spezifikationen |
|
Audio Eingang | Embedded Audio / Analog Stereo (Klinkenstecker) |
Audio Ausgang | Interner Kopfhöreranschluss (Stereo) / Analog Stereo (Klinkenstecker) |
Strom | DC 12V /24V / AC 100~240V(50~60Hz) |
Abmessungen | 442,5 x 309 x 84 mm (ohne Ständer) |
Gewicht | 6,52 kg |
Consultation
Media
Related links to "TVLogic LUM-181G"
The following info about the manufacturer is available...... more
TVLogic
TVlogic ist ein führender Entwickler und Hersteller von High-Performance 4K, FullHD und HD-Video Equipment für den digitalen Rundfunk und professionellen Videomarkt.
Gegründet im März 2002, setzt TVlogic konsequent auf Qualität und Stabilität. Die überragende Bildqualität der High-End-Geräte für Broadcast basiert auf der von TVlogic entwickelten Technologie.
