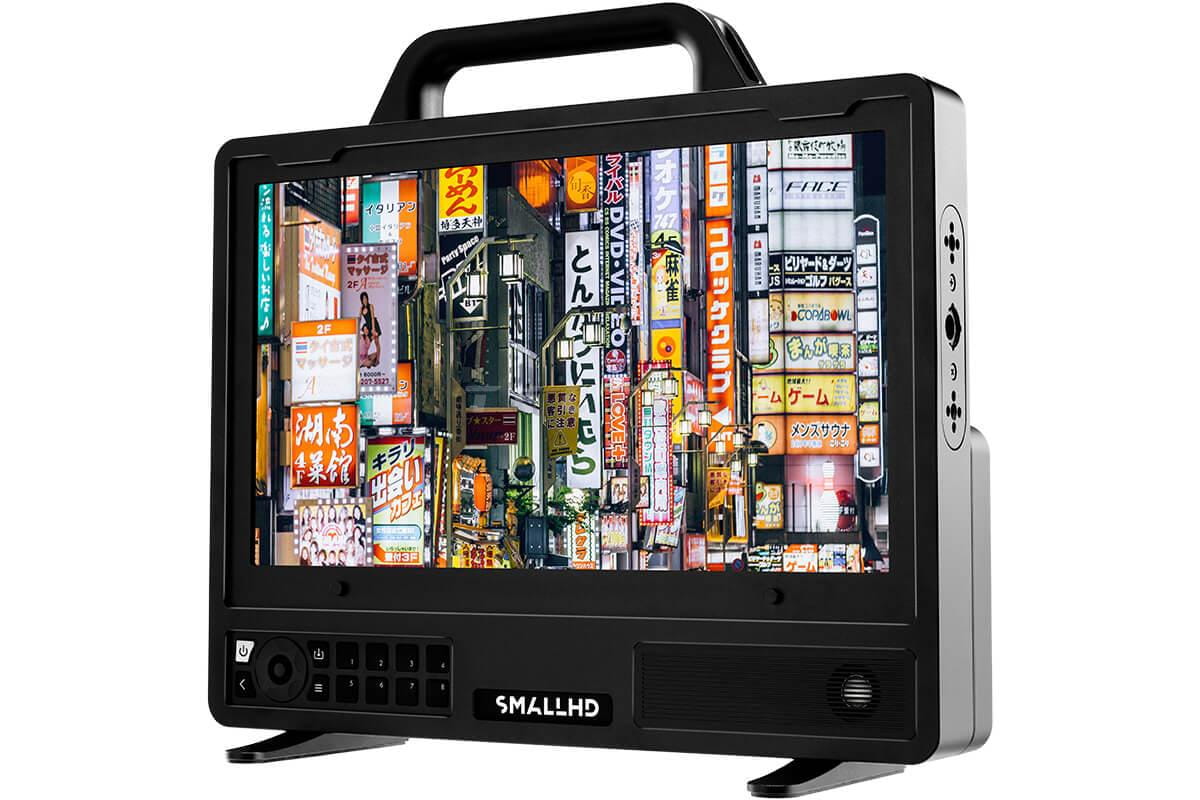

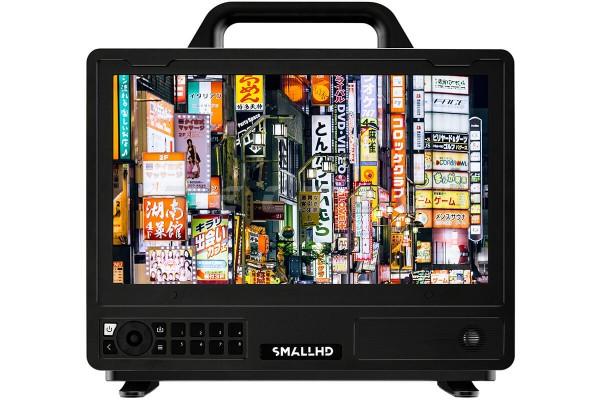

smallHD Cine 13

13" 4K HDR High Bright-Field Monitor


Mit dem Aufruf des Videos erklären
Sie sich einverstanden, dass Ihre Daten an YouTube
übermittelt werden und dass Sie die Datenschutzerklärung
gelesen haben.

Article number: 12285767
€3,961.16
Gross:€4,713.78
MSRP*: €4,606.00
Promotion -14%
Leasing:* mthly €75.70
Delivery time:
3 - 7 working days
3 - 7 working days
Add to wishlist
Der smallHD Cine 13 ist ein 4K-Produktionsmonitor mit einem  von 13,3" (34 cm) IPS LCD... more
Product information "smallHD Cine 13"

Der smallHD Cine 13 ist ein 4K-Produktionsmonitor mit einem  von 13,3" (34 cm) IPS LCD Panel. Der Cine 13 bietet mit einer Helligkeit von 1500+ nits eine brilliante Tageslichtsicht, bei einer Auflösung von 3840 x 2160 mit einer Farb-Bittiefe von 10-bit (8 + 2). Als Anschlüsse stehen je vier 12G-SDI und ein HDMI 2.0 Ein- und Ausgang, zwei USB (5 VDC / 2.4 A und 5VDC ( 1.5 A) und ein USB-C (5 VDC / 1.5 A), ein 4-pin XLR Eingang (210 W max, 12 - 34 VDC, 18 A max), sowie zwei 2-Pin DC Buchsen (12 VDC / 2 A, steckkompatibel zu LEMO™ Steckverbindern) zur Verfügung. Optional kann der Monitor im Feld auch über separat erhältliche Dual Gold - oder V-Mount Akkuplatten betrieben werden.

Hauptmerkmale

  • robuster 13,3" 4K HDR-Field Monitor
  • Auflösung 3840 x 2160
  • 10-bit (8 + 2) Farb-Bittiefe
  • 1500 nits High Bright-LED Display für Nutzug unter direktem Sonnenlicht
  • 1300:1 Kontrastverhältnis
  • 100% DCI P3 Wide Color Gamut
  • 4x 12G-SDI-Inputs
  • 4x 12G-SDI-Outputs
  • 1x HDMI 2.0 (4Kp60)
  • umfangreiche Funktionen für HDR-Cinematografie
  • Pixel Zoom, Focus Assist, Peaking und viele mehr
  • 2x 2-Pin DC Ausgänge (steckkompatibel zu LEMO™ Steckverbindern)

Lieferumfang

  • 1x smallHD Cine 13
  • 1x Standfüße (Set)
  • 1x Tragegriff
  • 1x 1300 Basic Acrylic Screen Protector
  • 1x 4K-HDMI-Kabel, 305 cm
  • 1x 4-poliger XLR-Stromadapter
  • 1x 8 GB SD-Karte
  • 1x Mikrofasertuch

Garantie

  • 1 Jahr Herstellergarantie

(Pixelfehler fallen erst ab drei toten Pixeln unter die smallHD Garantie)

Technische Daten

Monitor


Größe 13,3" / 34 cm Diagonale
Auflösung 3840 x 2160
Helligkeit 1500+ nits
Kontrastverhältnis 1300:1
Backlight-Typ Edge-Lit

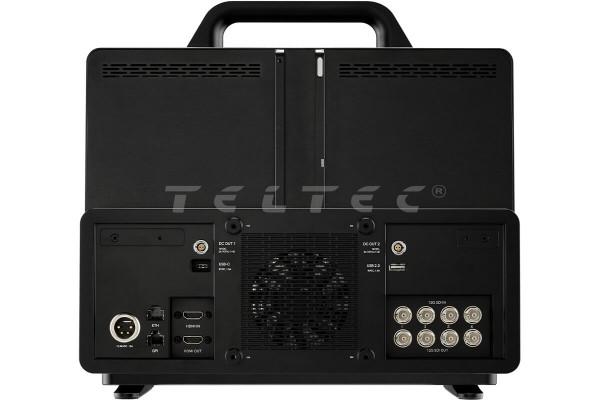

Videoeingänge


Eingänge 4x 12G-SDI
1x HDMI 2.0 (4Kp60)

Videoausgänge


Videoausgänge 4x 12G-SDI
1x HDMI 2.0 (4Kp60)

Strom


USB Plug & Power 1x USB (5 VDC / 2.4 A) (vorne)
1x USB (5 VDC / 1.5 A) (hinten)
1x USB-C (5 VDC / 1.5 A) (hinten)
Stromeingänge 1x 4-pin XLR (210 W max., 23 - 34 VDC, 18 A max)
Stromausgang 2x 2-pin DC Buchse (steckkompatibel zu LEMO™ Steckverbinder) (12 VDC / 2 A, kombiniert)
Akku-Stromversorgung
  • Dual Gold Mount Battery Bracket
  • Dual V-Mount Battery Bracket
  • Gold Mount Power Kit (über 4-Pin XLR)
  • V-Mount Power Kit (über 4-Pin XLR)

optional erhältliches Zubehör

Software


PageOS 4
  • interner Kalibrierungsassistent
  • Color Pipe Farbraum-Formatierung
  • Einstellungs-Dashboard für einfachen Zugriff auf allgemeine Einstellungen
  • Vorkonfigurierte Seiten
  • Seiten-Registerkarten
  • anpassbare Falschfarben-Overlays
  • benutzerdefinierbare 4K Waveform
  • Highlighten von Interessensgebieten (coming soon)
  • verbesserte Funktionstasten
  • Pixel Zoom, Focus Assist, Peaking

Allgemein


Gewicht ca. 3,09 kg
Accessories 13
Accessories and recommendations
Consultation

Questions about the product

Hotline: +49 6134 - 584480
E-Mail: shop@teltec.de
The following info about the manufacturer is available...... more
smallHD

Die smallHD-Serie umfasst LCD-OLED- und High Bright On-Camera-Feldmonitore für HDMI- und SDI-Kameras, die für Geschwindigkeit, Genauigkeit und Langlebigkeit gebaut sind. SmallHD-Monitore sind für den Einsatz in anspruchsvollen Umgebungen konzipiert und verfügen über das intuitive PageBuilder-Betriebssystem für den Zugriff auf die vielfältige Palette an integrierten Scopes und Tools.

Teltec ist autorisiertes Service Center für alle SmallHD Produkte.
