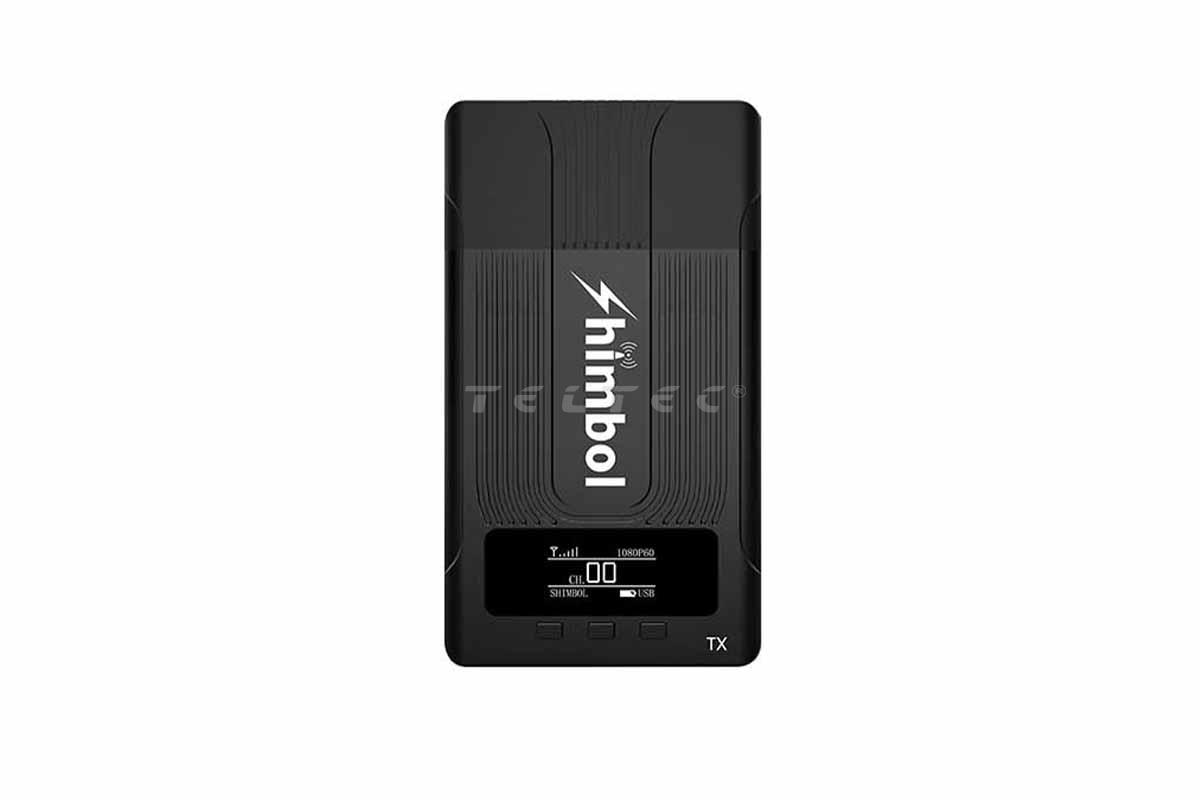

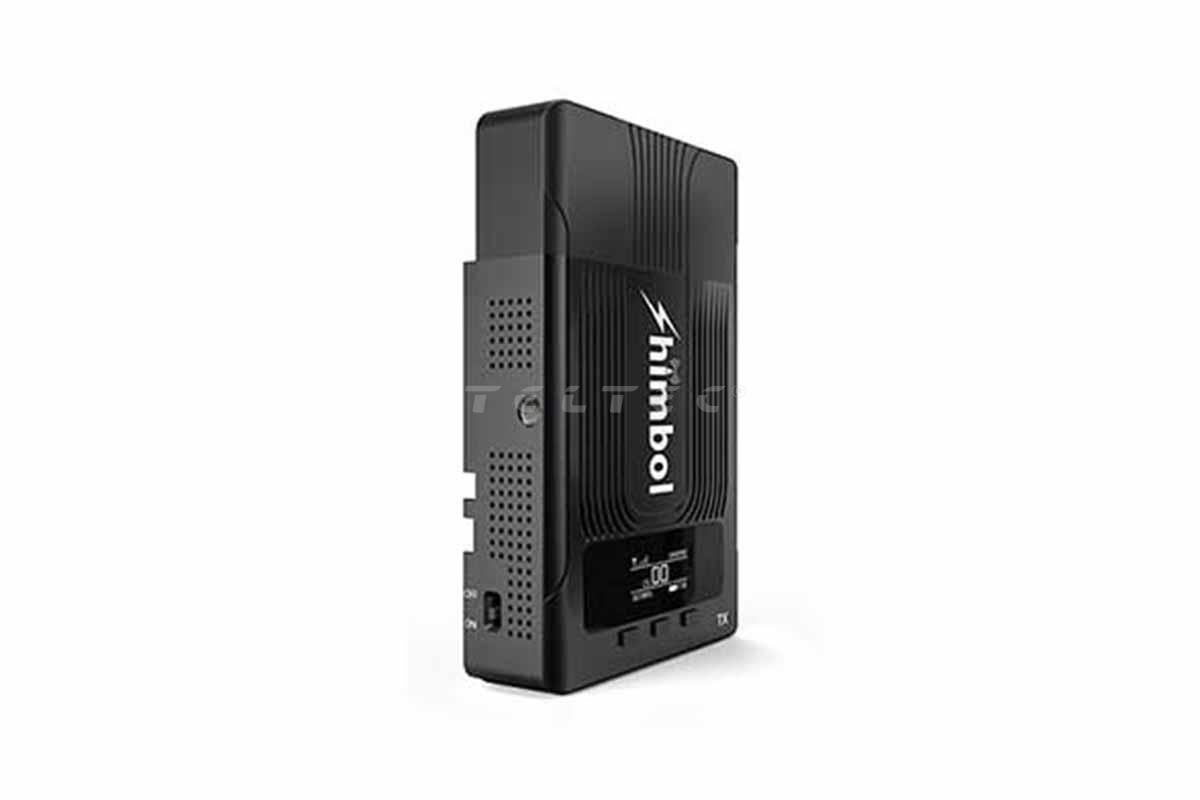

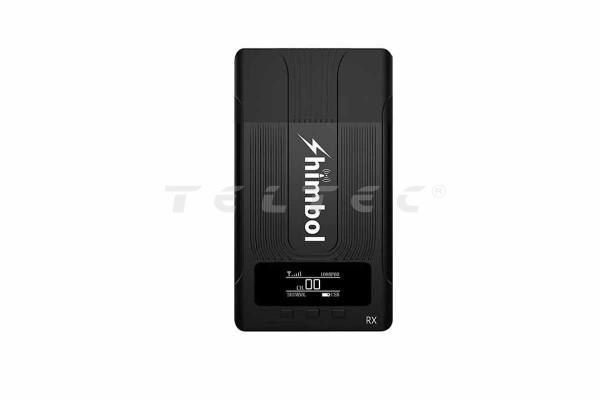

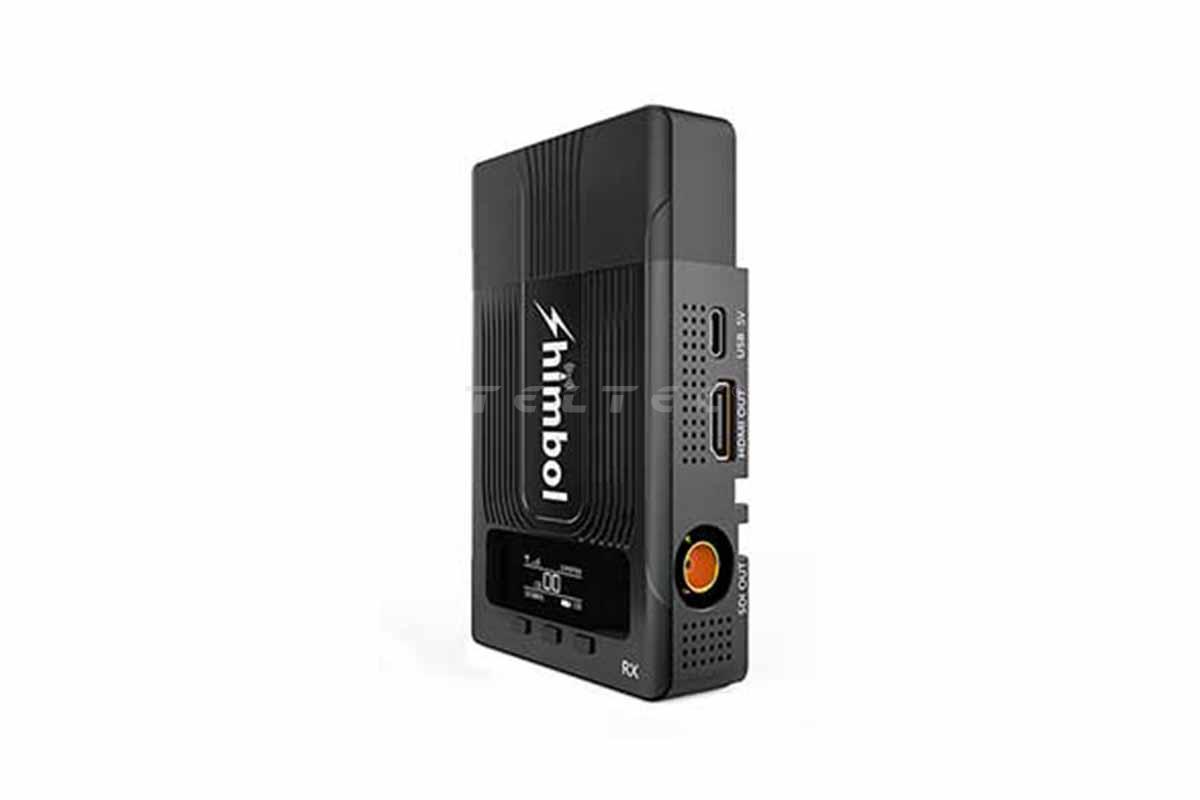

Shimbol ZO600S
TX+RX Set für SDI & HDMI Video, 180 m Sichtverbindung
Article number: 12309393
Das Shimbol ZO600S ist ein Set, bestehend aus einem Sender und einem Empfänger, der SDI- und... more
Product information "Shimbol ZO600S"
Das Shimbol ZO600S ist ein Set, bestehend aus einem Sender und einem Empfänger, der SDI- und HDMI-Videosignale mit bis zu 180 m Reichweite überträgt. Das Übertragungssystem ist Wi-Fi-basiert und arbeitet im 5-GHz-Frequenzband.
The YouTube video was blocked due to your cookie settings.
Hauptmerkmale
- überträgt bis zu 1080p60 SDI- oder HDMI-Video
- 180-m Sichtverbindung zum Empfänger
- Sender: HDMI- und SDI-Eingang
- Empfänger: HDMI- und SDI-Ausgang
- Metallgehäuse mit 1/4"-20 Gewinde
- helles OLED-Display
- Echtzeit-Überwachung über die Shimbol-App
- simultane Übertragung zu 2 Empfängern und einer App
- Stromversorgung über NPF-Akku der L-Serie (Akku ist nicht im Lieferumfang enthalten) oder USB Typ-C-Eingang
- sehr geringe Latenz mit 0,1 s
Lieferumfang
- 1x Transmitter
- 1x Receiver
- 1x USB-C-Stromkabel
Garantie
- 1 Jahr Herstellergarantie
Technische Daten
Transmitter |
Receiver |
|
Schnittstellen | HDMI-, SDI-Eingang | HDMI-, SDI-Ausgang |
Stromversorgung | 5 V DC/NP-F Akku | |
Stromverbrauch | < 5 W | < 3 W |
HDMI-Eingabeformat |
|
- |
HDMI-Ausgabeformat | - |
|
SDI-Eingabeformat |
|
- |
SDI-Ausgabeformat | - |
|
Übertragungsfrequenzband | 5 GHz | |
Übertragungsleistung | 21 dBm MAX | - |
Übertragungsverzögerung | 80 ms, verrauschte HF-Umgebung 120 ms | |
Empfangsempfindlichkeit | - | -80 dBm |
Maße | 113 x 63,5 x 20,5 mm | 113 x 63,5 x 20,5 mm |
Gewicht | ca. 160 g | ca. 160 g |
