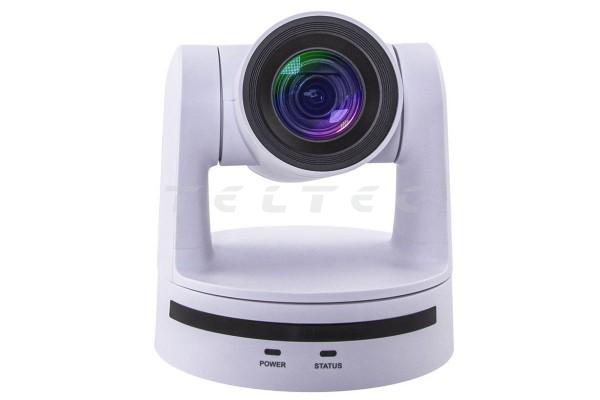

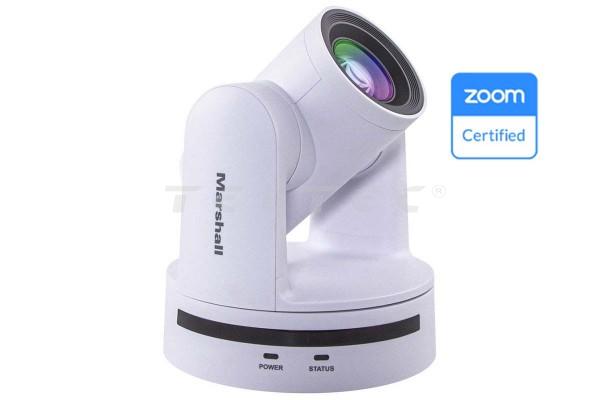

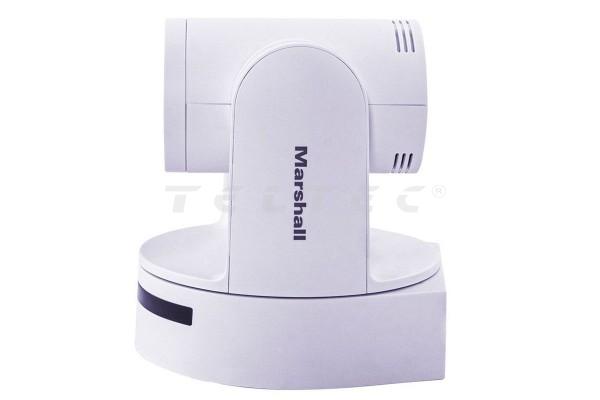

Marshall CV605-U3W

kompakte FullHD PTZ-Kamera mit USB, HDMI und IP Anschlüssen, weiß

Article number: 12300505
€705.44
Gross:€839.47
MSRP*: €849.00
Promotion -17%
Delivery time:
3 - 7 working days
3 - 7 working days
Add to wishlist
Die Marshall CV605-U3W ist eine kompakte FullHD Schwenk-/Neigekamera mit USB-HDMI und... more
Product information "Marshall CV605-U3W"

Die Marshall CV605-U3W ist eine kompakte FullHD Schwenk-/Neigekamera mit USB-HDMI und IP-Anschlüssen. Ausgestattet ist die CV605-U3 mit einem 1/2.8" CMOS Sensor mit 2 Megapixeln und bietet einen 5fach optischen Zoom, sowie einen 10fach digitalen Zoom. Die Marshall CV605-U3 unterstützt IP Streaming Protokolle: H.265/H.264 (RTSP/RTMP, ONVIF, GBT28181; Visca over IP control protocol) und ist zertifiziert für Zoom Rooms. Dank PoE+ können Video-, Audio-, Steuersignale und Stromversorgung über ein CAT-Kabel erfolgen.

The YouTube video was blocked due to your cookie settings.

Hauptmerkmale

  • hochwertiger Full HD CMOS Sensor
  • Auflösung 1920 x 1080p60
  • USB 3.0
  • HDMI
  • IP
  • PoE+
  • RS-232
  • TRS-Audio
  • IP Streaming: H.265/H.264 (RTSP/RTMP, ONVIF, GBT28181; Visca over IP control protocol)
  • zertifiziert für Zoom-Rooms
  • Gehäusefarbe: weiß

Lieferumfang

  • 1x Marshall CV605-U3W
  • 1x Infrarot-Fernbedienung
  • 1x Netzteil & Kaltgerätekabel

Garantie

  • 2 Jahre Herstellergarantie

Technische Daten

Gehäusefarbe weiß
Sensor 2 Megapixel CMOS (1/2.8") HD Sensor
Objektiv
  • 5-fach optischer Zoom (3~15mm)
  • Öffnungswinkel 85° (bei 3mm Zoom) bis 16° (bei 15mm Zoom)
  • 10-fach digitaler Zoom
  • Min. Illumination: 0.5 Lux (F1.8)
Auflösung und Bildraten
  • 1920 x 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 fps)
  • 1920 x 1080i (60 / 59.94 / 50 fps)
  • 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 fps)
Anschlüsse
  • Ethernet
  • HDMI
  • USB-C (USB 3.0 & USB 2.0)
  • RS232 (über RJ45 Port)
  • 3.5mm Audio Input,  (AAC, MP3, G.711A compression)
weitere Merkmale
  • Zertifiziert für Zoom Rooms
  • PoE+
  • Video, Audio, Steuersignale und Stromversorgung über ein CAT-Kabel
  • IP Streaming: H.265/H.264 (RTSP/RTMP, ONVIF, GBT28181; Visca over IP control protocol)
  • Bewegungsradius: 270° links/rechts, 60° oben/unten
  • Montage: möglich über 1/4" Innengewinde auf der Unterseite. Wand- und Deckenhalterung separat erhältlich
Steuermöglichkeiten
  • Infrarot Fernbedienung für Presets, Pan, Tilt, Zoom, Fokus & Bildeinstellungen über On-Screen Menü
  • Web-Interface: Zugang durch Eingabe der IP-Adresse in den Browser
  • Joystick Controller VS-PTC200 (über RS232): für Presets, Pan, Tilt, Zoom, Fokus, Bildeinstellungen über On-Screen Menü
  • Joystick Controller VS-PTC-IP (über IP / RS232): für Presets, Pan, Tilt, Zoom, Fokus, Bildeinstellungen direkt am Controller & On-Sreeen Menü
Empfohlene Umgebungstemperatur- und Luftfeuchtigkeit

Im Betrieb:
Temperatur: -10℃~+50℃
Luftfeuchtigkeit: 20% - 80%

bei Lagerung:
Temperatur: -10℃~+60℃
Luftfeuchtigkeit: 20% - 95%

Maße 160 x 145 x 170 mm (HxBxT)
Gewicht 1,115 kg
