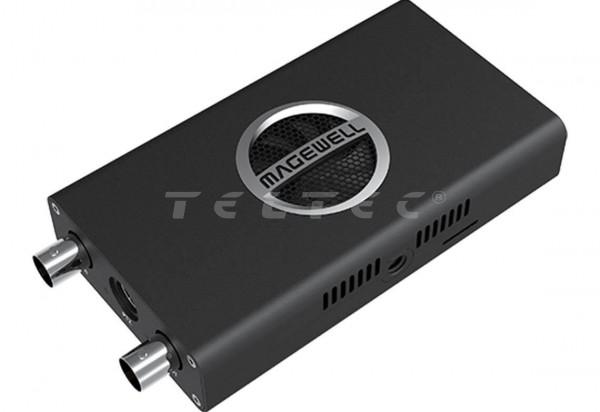

Magewell Pro Convert SDI 4K Plus
4K SDI zu NDI Encoder
Article number: 12283063
Magewell Pro Convert SDI Plus 4K kodiert SDI-Signale zu NDI. Unterstützt werden Auflösungen... more
Product information "Magewell Pro Convert SDI 4K Plus"
Magewell Pro Convert SDI Plus 4K kodiert SDI-Signale zu NDI. Unterstützt werden Auflösungen bis zu 4Kp30 sowie die Stromversorung via Power Over Ethernet.
Hauptmerkmale
- 6G-SDI zu NDI Konverter
- unterstützt PTZ-Steuerung und Tally-Signale
- SDI Loop Through
- Auflösungen bis zu 4Kp30
- Anpassung von Helligkeit, Kontrast und Sättigung
- Power Over Ethernet Unterstützung
- Konfiguration per Web Interface
Lieferumfang
- 1x Magewell Pro Convert SDI Plus 4K
- 1x Netzteil
- 1x USB 2.0 Kabel, Typ A zu Typ B
- 1x Mini-DIN-8 (PTZ und Tally) zu RS232 (PTZ)
- 1x Mini-DIN-8 (Tally) Kabel
- 1x L-Bracket
Garantie
- 2 Jahre Herstellergarantie
Technische Daten
Schnittstellen | |

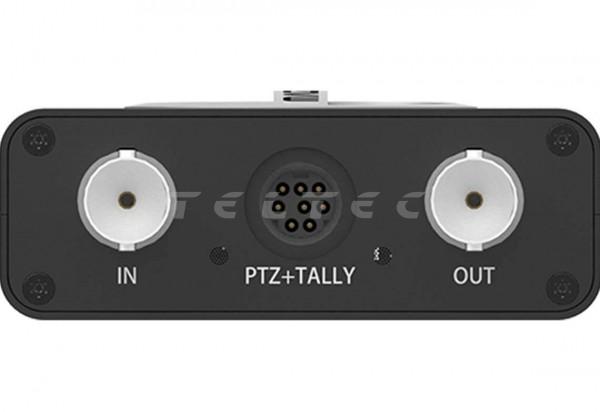

Videoeingänge | 1x 6G-SDI |
Videoausgänge | 1x 6G-SDI Loop Ausgang |

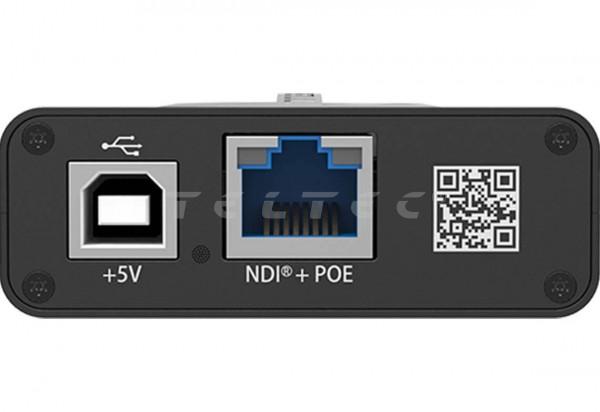

Netzwerk | 1x RJ45, 10/100/1000 MBit/s Ethernet, Power Over Ethernet |
USB | 1x USB 2.0 Typ B |
PTZ und Tally | 1x Mini-DIN-8 |
Decoding | |
Protokolle | NDI |
Auflösung | 4096 x 2160 Pixel bei 30 fps |
Konvertierung und Bearbeitung | De-Interlacing, Spiegelung, Helligkeit, Kontrast und Sättigung Anpassung von Farbraum, Framerate oder Seitenverhältnis |
NDI | NDI 3.X |
Allgemein | |
Gewinde | 1x 1/4" Gewinde |
Abmessungen | 117,5 x 66,7 x 23,4 mm |
Netzteil | 5 V / 2,1 A |
Stromverbrauch | Bis zu 7 W |
Betriebstemperatur | 0 bis 45 °C |
