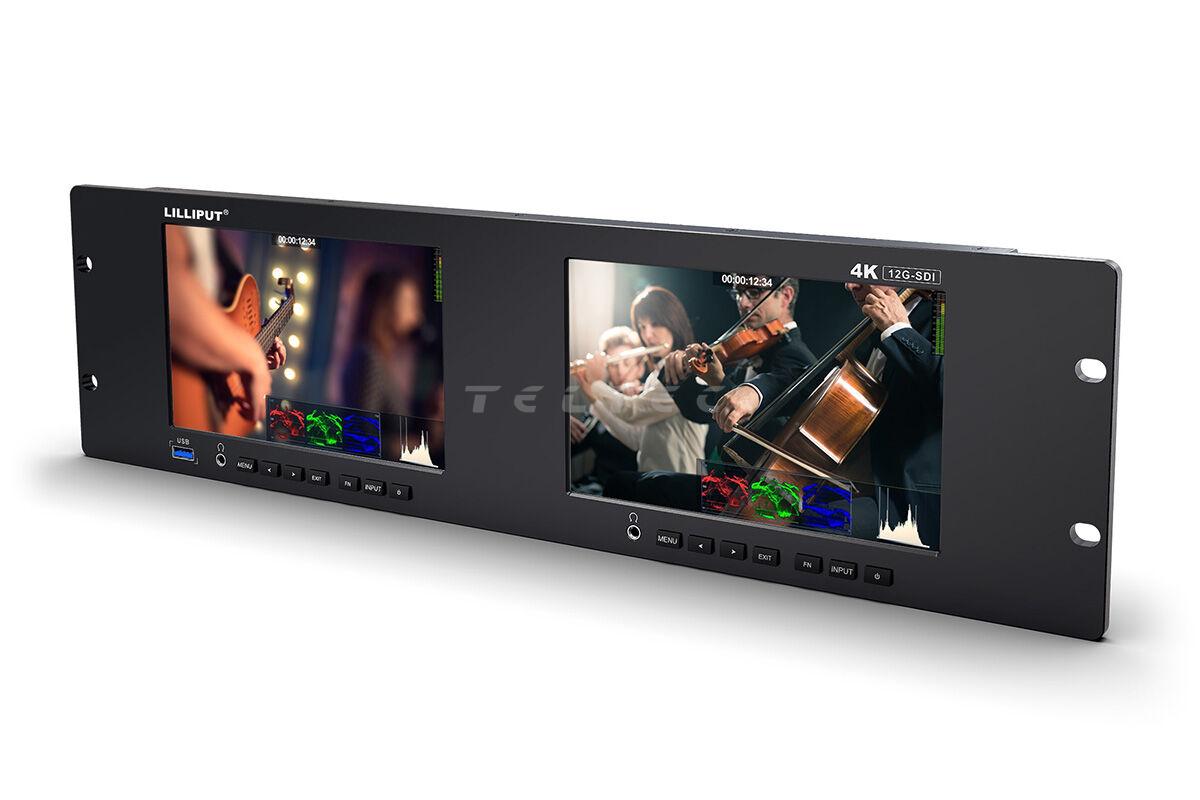

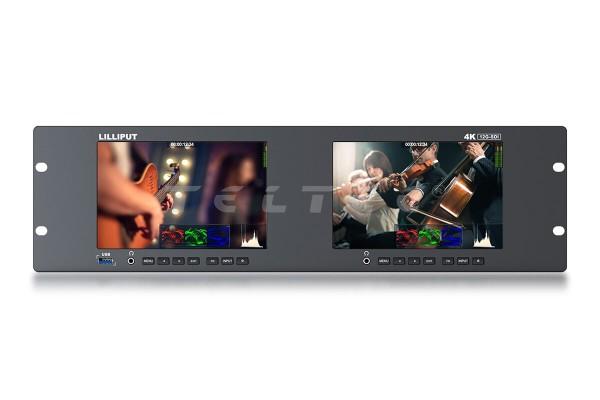

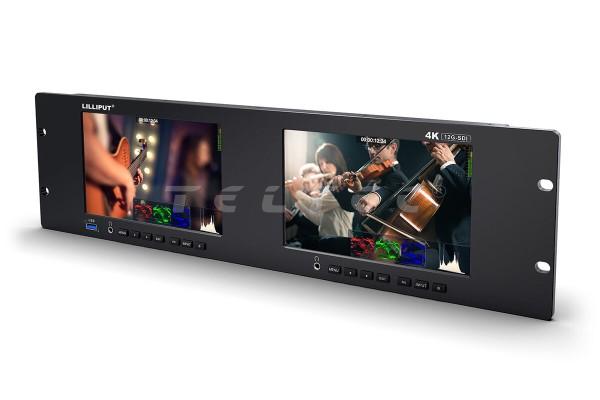

Lilliput RM7026-12G
zwei 7" LTPS-Videomonitore (1920x1200) in einem 3RU Rack
Article number: 12319086
€1,099.00
Gross:€1,307.81
Das Lilliput RM7026-12G ist ein 3RU-Rackmonitor mit zwei 7" LTPS-Displays, die über eine... more
Product information "Lilliput RM7026-12G"
Das Lilliput RM7026-12G ist ein 3RU-Rackmonitor mit zwei 7" LTPS-Displays, die über eine Helligkeit von 1.000 Nits verfügen. Die Displays sind mit jeweils einem 12G-SDI- und einem HDMI 2.0 Ein- und Ausgang ausgestattet, die Videoauflösungen bis 2160p60 unterstützen. Via LAN-Schnittstelle ist der Anschluss eines Computers zur Fernsteuerung sowie zur Konfiguration der Displays möglich. Darüber hinaus unterstützen das RM7026-12G Funktionen wie HDR, Waveform, Histogram und False Color.
Hauptmerkmale
- 3RU-Rackmonitor mit zwei 7" LTPS-Displays
- Helligkeit 1.000 Nits
- Kontrastverhältnis 1200:1
- Bildwinkel 160°/160° (H/V)
- 1x 12GSDI-In/Out, 1x HDMI 2.0 In/Out
- unterstützt Videoauflösungen bis 2160p60
- Fernsteuerung & Konfiguration via LAN-Schnittstelle
- unterstützt Funktionen wie HDR, Timecode, Waveform, Histogram, False Color
- serielle Schnittstelle
- robustes Metallgehäuse
Lieferumfang
- 1x Lilliput RM7026-12G
- 1x 12V DC Netzteil
- 1x Seriell Adapter
Technische Daten
Display |
|
Größe | Dual 7″ |
Auflösung | 1920 x 1200 |
Seitenverhältnis | 16:10 |
Helligkeit | 1.000 cd/m² |
Kontrast | 1000:1 |
Bildwinkel | 160°/160° (H/V) |
HDR Support | HLG / ST2084 300 / 1000 / 10000 |

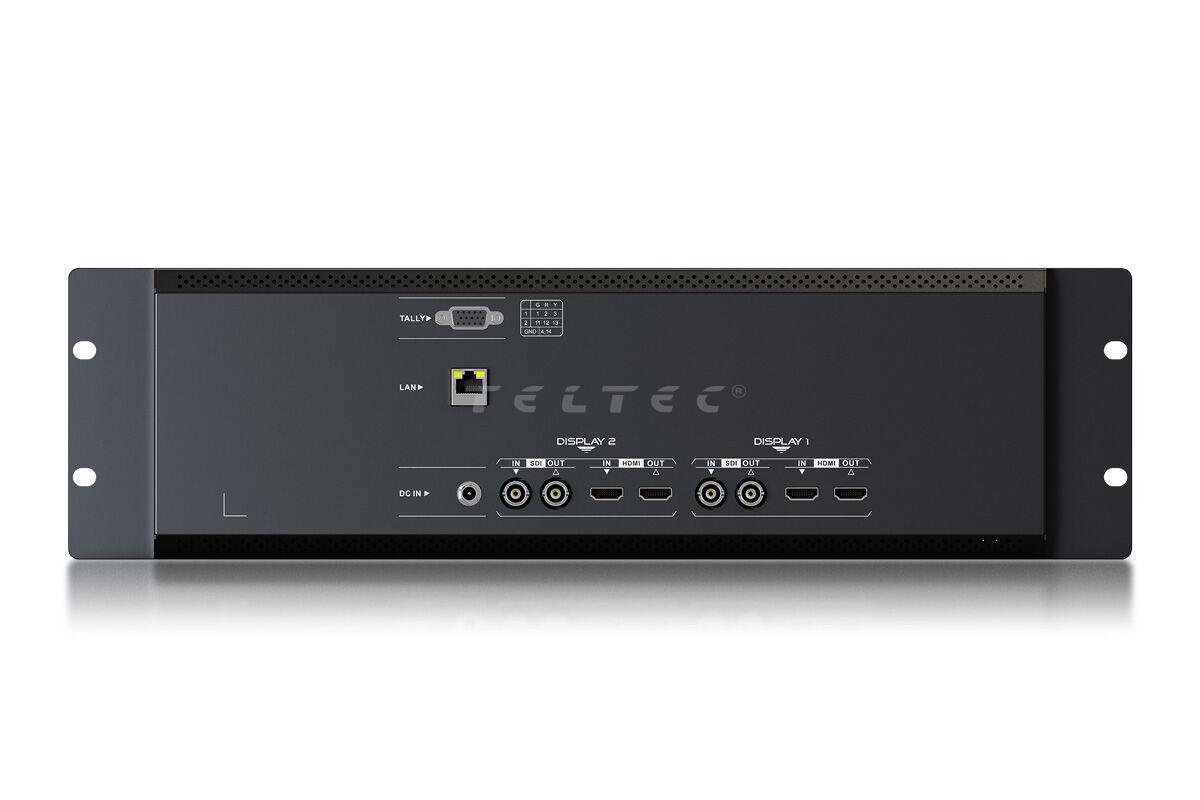

Video-Eingang |
|
SDI | 2× 12G (unterstützt bis zu 4K 60Hz) |
HDMI | 2×HDMI (unterstützt bis zu 4K 60Hz) |
LAN | 1 |
Video-Loop-Ausgang |
|
SDI | 2× 12G (unterstützt bis zu 4K 60Hz) |
HDMI | 2× HDMI (unterstützt bis zu 4K 60Hz) |
Unterstützte Ein-Ausgabeformate |
|
SDI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50… |
HDMI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50… |
Audio Ein-/Ausgang |
|
Kopfhörer | 3,5 mm |
Lautsprecher | / |
Fernsteuerung |
|
RS422 | Ein/aus |
GPI | 1 |
LAN | 1 |
Stromversorgung |
|
Eingangsspannung | DC 12-24 V |
Stromverbrauch | ≤ 21 W |
Umgebung |
|
Betriebstemperatur | 0 ℃ bis 50 ℃ |
Lagertemperatur | -20 ℃ bis 60℃ |
Allgemein |
|
Maße | 480 mm × 131,6 mm × 32,5 mm |
Gewicht | ca. 1,83 kg |
