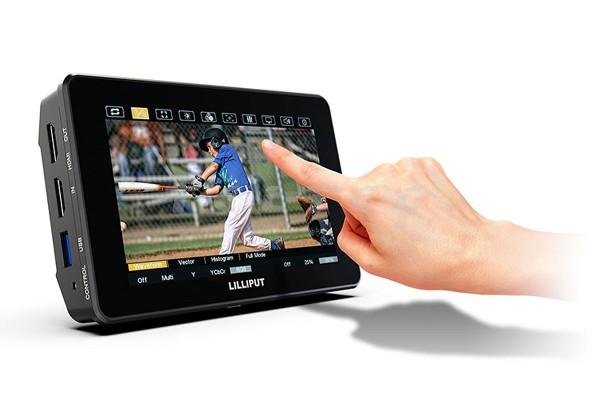

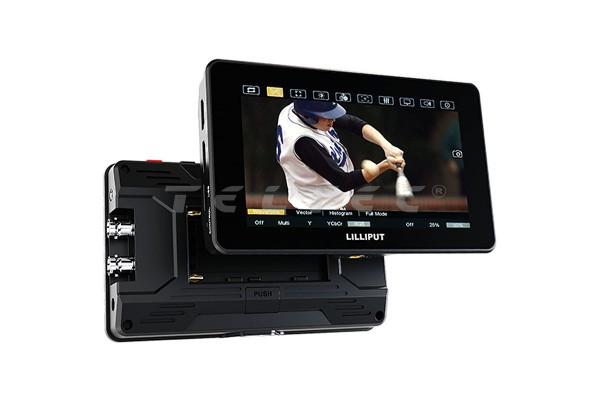

Lilliput HT5S
5,5" Ultra High 2000 Nits Brightness Touch On-Camera Control Monitor
Article number: 12309984
€279.00
Gross:€332.01
Der Lilliput HT5S ist ein Ultra-heller 5,5" On-Camera Monitor mit einem Touchscreen-Panel... more
Product information "Lilliput HT5S"
Der Lilliput HT5S ist ein Ultra-heller 5,5" On-Camera Monitor mit einem Touchscreen-Panel und einer Auflösung von 1920 x 1080. Die Helligkeit des Panels beträgt 2000 nits bei einem Kontrastverhältnis von 1000:1. Der Monitor verfügt über einen integrierten Sensor, der die Helligkeit des HT5S automatisch dimmt. Es stehen 3G-SDI und HDMI 2.0 Anschlüsse zur Verfügung. Der Lilliput HT5S bietet zudem eine Camera Control-Funktion per LANC-Kabel mit Sony Kameras für die Steuerung bestimmter Kamera-Funktionen. Die Stromversorgung des Monitors erfolgt über einen NP-F Typ Akku oder über ein optionales Netzteil.
The YouTube video was blocked due to your cookie settings.
Hauptmerkmale
- Displaygröße: 5,5"
- Auflösung: 1920 x 1080
- Seitenverhältnis: 16:9
- Helligkeit: 2000 nits
- Kontrastverhältnis: 1000:1
- integrierter Lichtsensor für eine automatische Dimmfunktion
- Eingänge: 3G-SDI und HDMI 2.0
- 3G-SDI unterstützt bis zu 1080p60
- HDMI 2.0 unterstützt bis zu 2160p60
- Touchscreen-Display für intuitive und einfache Bedienung
- HDR Unterstützung
- integrierte 3D LUTs mit 17 Standard logs und 6 User logs
- Camera Control über LANC Kabel ermöglicht die Kamerasteuerung
für eingige Funktionen von Sony Kameras - Waveform, Histogramm, False Color, anamorphic De-Squeeze, Peaking Focus, Vektorskop uvm.
- Stromversorgung über NP-F Akku oder über optionales Netzteil
Lieferumfang
- 1x Lilliput HT5S 5,5" Monitor
- 1x HDMI Kabel Typ A auf Typ D, 0,8 m
- 1x LANC-Kabel
- 1x Kugelgelenkkopf
- 1x USB-Stick
Technische Daten
Display |
|
Größe | 5,5" LCD |
Auflösung | 1920 x 1080 |
Seitenverhältnis | 16:9 |
Helligkeit | 2000 nits |
Kontrastverhältnis | 1000:1 |
Blickwinkel | 160° / 160° (H/V) |
Farbraum | 100 % BT.709 |
HDR Unterstützt | HLG; ST2084 300/1000/10000 |

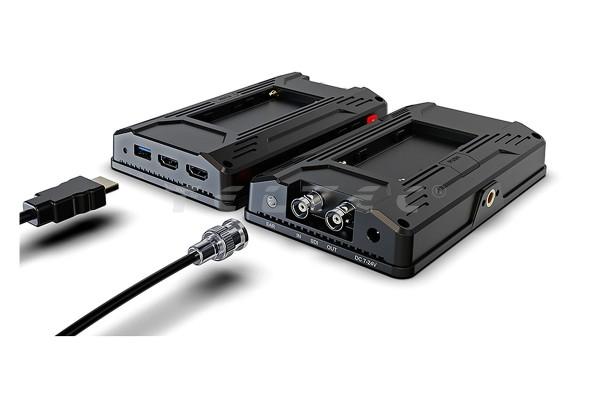

Anschlüsse |
|
Signaleingang | 1x SDI 1x HDMI 2.0 |
Signalausgang (Loop) | 1x SDI 1x HDMI 2.0 |
unterstützte Formate |
|
SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
Audio |
|
HDMI | 8-Kanal 24-bit |
Kopfhöreranschluss | 3,5 mm – 2 Kanal 48 kHz 24-bit |
eingebaute Lautsprecher | 1 |
Power |
|
Eingangsspannung | DC 7 - 24 V |
Stromverbrauch | > 14 W (15 V) |
Umgebung |
|
Betriebstemperatur | 0° C - 50° C |
Lagertemperatur | -20° C - 60° C |
Allgemein |
|
Maße | 154,8 x 93,8 x 26,5 mm |
Gewicht | ca. 310 g |
