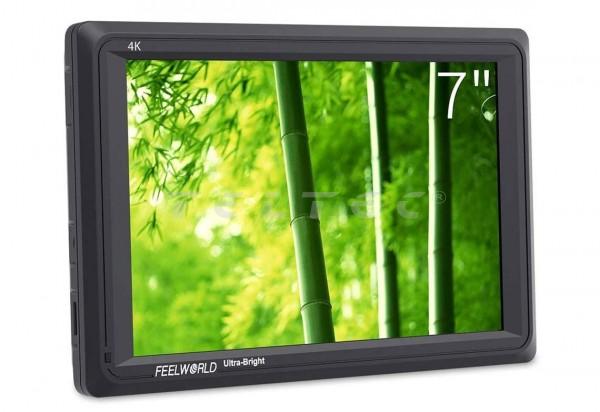

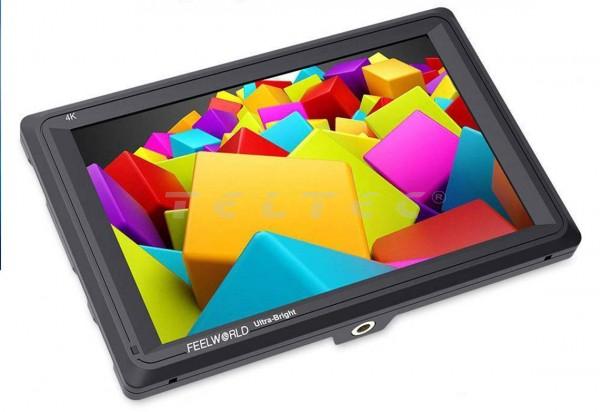

Feelworld FW279S 7" LCD Videomonitor
7" High Brightness LCD Videomonitor
Article number: 12282811
7" High Brightness LCD Videomonitor WUXGA (1920 x 1200)
Hauptmerkmale
Auflösung:... more
Product information "Feelworld FW279S 7" LCD Videomonitor"
7" High Brightness LCD Videomonitor WUXGA (1920 x 1200)
Hauptmerkmale
- Auflösung: 1920 x 1200
- 4K Signale werden am HDMI Eingang erkannt, in Full HD dargestellt und über den HDMI Loop-Through Ausgang unverändert in 4K weitergegeben
- Helligkeit: 2200 Nits
- Bildformat: 16:10
- IPS LCD Panel
- Kontrastverhältnis: 1200:1
- Betrachtungswinkel (H/V): 160° / 160°
- LED Backlight Technologie
- Bild lässt sich gleichzeitig in der Horizontalen und in der Vertikalen spiegeln (flippen)
- Over- und Underscan
- Histogramm
- Peaking Fokus Assistent (Wahlweise rote, grüne oder blaue Markierungen)
- Zebra

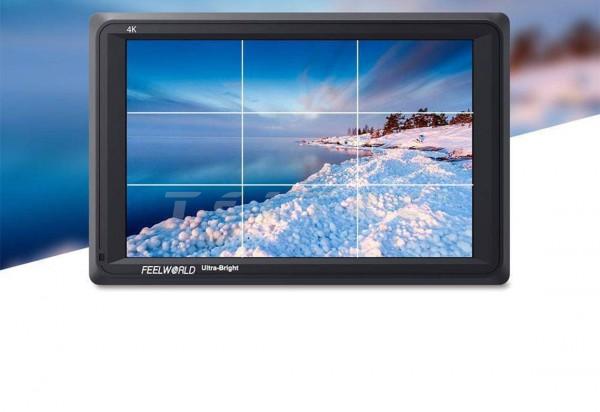

- 3x3 Raster
- 1:1 Pixel Modus
- Marker für Center und Safe Area (80%, 85%, 90%, 93%, 96%)
- Marker für Seitenverhältnis (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Balkenanzeige für Audiopegel
- Falschfarben
- Image Freeze
- Zoom Funktion (4x, 9x, 16x)
- Anamorpher desqueeze Modus (1,3x; 2x; 2x mit Vergrößerung)
- 2x Programmierbare Schnellauswahl-Buttons
- integrierter Lautsprecher
- 1/4" Gewinde auf der Unterseite
Lieferumfang
- 1x Feelworld FW279S
- 1x NP-F Akku-Mount
- 1x Kugelkopf mit 1/4" Schraube
- 1x HDMI (m) auf Mini HDMI (m) Kabel
Technische Daten
Unterstützte SDI-Signale (Ein- und Ausgang) | 1920 x 1080/60p, 59.94p, 50p, 30p, 29,97p, 25p, 24p, 24PsF, 23,98p, 23.98PsF 1920 x 1080/60i, 59.94i, 50i 1280 x 720/60p, 59.94p, 50p, 30p, 29,97p, 25p, 24p, 23,98p 576i 480i |
Unterstützte HDMI-Signale (Ein- und Ausgang): | 4098 x 2160/24p 3840 x 2160/30p, 29,97p, 25p, 24p, 23,98p 1920 x 1080/60p, 59.94p, 50p, 30p, 29,97p, 25p, 24p, 24PsF, 23,98p, 23.98PsF 1920 x 1080/60i, 59.94i, 50i 1280 x 720/60p, 59.94p, 50p, 30p, 29,97p, 25p, 24p, 23,98p 576p 576i 480p 480i |
Anschlüsse | 1x 3G-SDI / HD-SDI / SDI In (f) 1x 3G-SDI / HD-SDI / SDI Out (f) 1x HDMI In (f) 1x HDMI Out (f) 1x Kopfhörer, 3,5 mm Stereo-Klinke (f) 1x Mini USB (f) 1x DC In, 7 - 24 V, 2,5 mm Hohlstecker |
Spannungsversorgung | DC 7 - 24 V (optional erhältliches Netzteil) oder NP-F Akku |
Leistungsaufnahme | max. 18 W |
Maße | 18 x 12 x 2,5 cm |
Gewicht | 95 g mit Akku-Mount ohne Akku |
