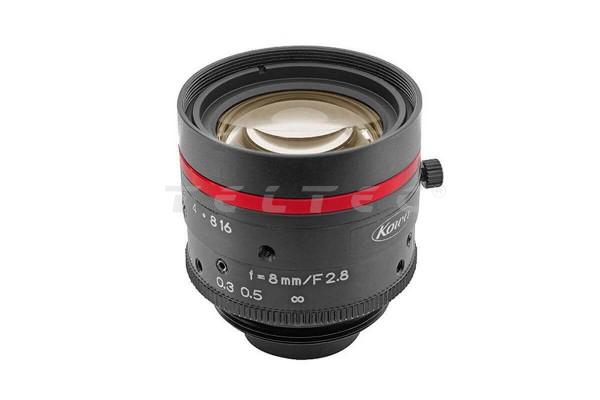

Dream Chip Kowa LM8JC5MC
C-Mount Objektiv, 2/3", 5 Megapixel
Article number: 12296919
€331.00
Gross:€393.89
Hauptmerkmale
kleinstes 5 Megapixel Objektiv seiner Klasse
ultra-kompaktes Design... more
Product information "Dream Chip Kowa LM8JC5MC"
Hauptmerkmale
- kleinstes 5 Megapixel Objektiv seiner Klasse
- ultra-kompaktes Design
- 2/3" 5 Megapixel
- C-Mount
- Brennweite 5 mm
- für Sensoren mit einer Pixelgröße ab 3,5 µm
Lieferumfang
- 1x Dream Chip Kowa LM8JC5MC C-Mount Objektiv, 2/3", 5 Megapixel
Technische Daten
Brennweite | 8 mm |
Sensorgröße | 2/3" |
Pixelgröße | 3,45 µm |
Mount | C-Mount |
Steuerung (Blende) | Manuell |
Blende (F-Stop) | 2,8 |
Objektivart | Festbrennweite |
Wellenlängenbereich | VIS 380 - 780 nm |
Fokusbereich | 0,15 bis unendlich |
Steuerung (Fokus) | Manuell |
Bildfeld bei Mindestarbeitsabstand, horizontal | 178 mm |
Bildfeld bei Mindestarbeitsabstand, vertikal | 132 mm |
Auflösung Mitte | 160 lp/mm |
Auflösung Rand | 100 lp/mm |
Megapixel | 5 |
TV Verzeichnung | -0,85 % |
Back Fokus in air | 10,8 mm |
Filtergröße | M30,5 x P0,5 mm |
Temperaturbereich | -10 °C bis 50 °C |
Maße | Ø32 x 27 mm |
Gewicht | 55 g |
