Digital Forecast BRIDGE_X_TS_MINI
5" Touch-LCD-Monitor, 3G-SDI/HDMI + Cross Convert
Article number: 12283907
€1,528.03
Gross:€1,818.36
Der Digital Forecast BRIDGE_X_T S _MINI bietet je einen HDMI- & SDI-Eingang & -Ausgang mit... more
Product information "Digital Forecast BRIDGE_X_TS_MINI"

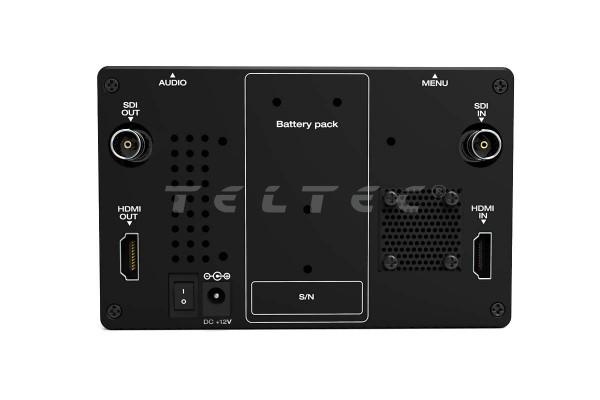

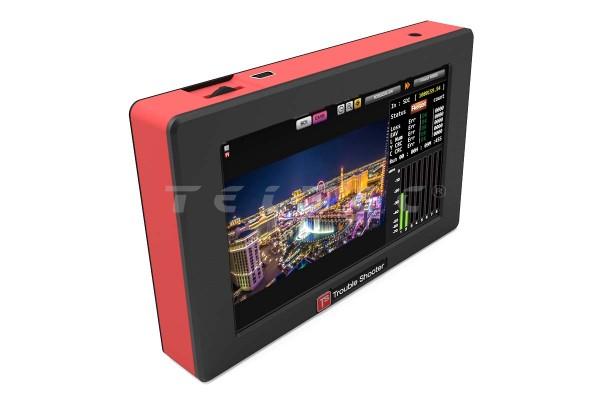

Der Digital Forecast BRIDGE_X_TS_MINI bietet je einen HDMI- & SDI-Eingang & -Ausgang mit Cross Conversion, Generierung und Messung von Testpattern und weitere professionelle Funktionen. Der tragbare Signalwandler hat eine Messfunktion, ist handlich und leistungsstark. Mit den Funktionen der X_TS-Serie kann man eine Vielzahl von Signalstatus bequem über den 5" LCD-Touchscreen überprüfen, von der Videoanzeige bis zu SDI Jitter und Kabelzuständen.
Hauptmerkmale
- SDI/HDMI-Cross-Konverter
- SDI In/Out (SD/HD/3G, alle Standard-Formate)
- HDMI In/Out (SD/HD/3G, alle Standard-Formate)
- Testpattern-Generator: 8 verschiedene Typen verfügbar
- Testpattern-Generator und -Messung gleichzeitig
- Eye Pattern-Diagram für den SDI-Input
- Kabellängen und Jittermessung (SDI)
- SDI-Signal Integritätscheck (Loss, TSR, CRC, Line Number)
- HDMI-Signal Integritätscheck (Loss, Resolution, HDCP)
- Audio Level Check (Bis zu 8 Kanäle können angezeigt werden)
- Audio Monitoring (Kopfhörer-Ausgang)
- 5" Touchscreen (800 x 480)
- optionale externe Batterie (Sony NP-F oder Canon LP-E6)
- 12 V DC Stromversorgung (Betriebsspannungsbereich: 7 ~ 17 V DC)
- 325 g
Video Standards
- Unterstützung des HDMI v1.3-Formats
- Unterstützung von VGA, Comp, CVBS-Format
- Unterstützung für Multirate-SDI-Formate
SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-274M: 1080i (60/59.94/50)
SMPTE-292M: 1080p (30/29.97/25/24/23.98)
SMPTE-424M: 1080p (60/59.94/50) 3G
Lieferumfang
- 1x Digital Forecast BRIDGE_X_TS_MINI
Technische Daten
Betriebsumgebung |
|
Stromversorgung | + 12 V DC |
Leistungsaufnahme | 9 Watt (maximal 10 Watt) |
Betriebstemperatur | 0 bis ~ 70° C |
Luftfeuchtigkeit | 0 ~ 95 % RH, nicht kondensierend |
LCD-Spezifikation |
|
Größe | 5 Zoll |
Auflösung | 800 x 480 |
Pixelfläche | 0.135 x 0.135 mm |
Anzeigefläche | 108 x 64.8 mm |
