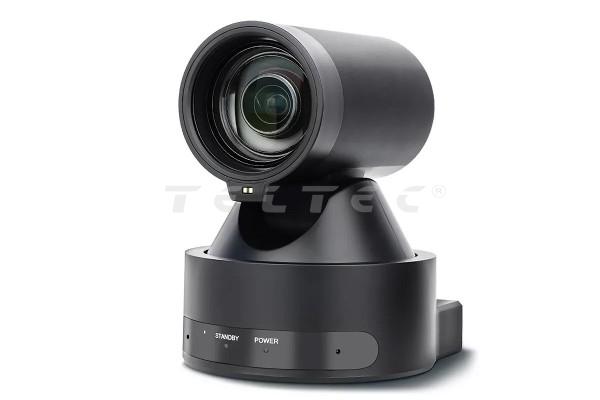

YoloLiv VertiCam
1/2.8" FullHD PTZ-Kamera mit 12x optischem Zoom, HDMI Anschluss und vertikal Video
Die YoloLiv VertiCam ist eine FullHD PTZ-Kamera mit einem 1/2.8 CMOS Sensor und bietet einen... more
Product information "YoloLiv VertiCam"
Die YoloLiv VertiCam ist eine FullHD PTZ-Kamera mit einem 1/2.8 CMOS Sensor und bietet einen 12fachen optischen Zoom, sowie einen 16fachen digitalen Zoom. Die Videoausgabe der VertiCam erfolgt über den HDMI Anschluss oder auch als UVC über den USB 3.0 Typ B, sodass der Videoinhalt direkt über App gestreamt werden kann. Mit dem YoloLiv Instream lassen sich die Daten auch direkt, ohne einen Computer mit vertikal Video streamen.
The YouTube video was blocked due to your cookie settings.
Hauptmerkmale
- 1/2.8" FullHD CMOS Sensor
- effektive Pixel 2.07
- vertikale Videoausgabe
- Auflösung bis 1080p60 (MJPEG)
- 4:2:2 10 bit
- 12x optischer Zoom f=3.5mm ~ 42.3mm, F1.8 ~ F2.8
- 16x digitaler Zoom
- TOF Autofokus
- UVC Unterstützung (UVC 1.1)
- Anschlüsse: HDMI 1.4b, USB 3.0 (Typ B)
- fernsteuerbar über Fernbedienung
- kompatibel mit YoloLiv Instream
Lieferumfang
- 1x YoloLiv VertiCam V100
- 1x USB Kabel
- 1x Fernsteuerung
- 1x DC 12 V Power-Adapter
Garantie
- 12 Monate eingeschränkte Herstellergarantie
Technische Daten
Kamera |
|
Sensor | 1.2/8" CMOS Sensor, effektive Pixel 2.07 Mio. |
Auflösung | 1080p60, 1080p50, 1080p30, 1080p25, 720p60, 720p50 |
Scan Modus | progressiv |
Objektiv | f=3.5mm ~ 42.3mm, F1.8 ~ F2.8 |
optischer Zoom | 12x |
digitaler Zoom | 16x |
min. Beleuchtung | 0.5 Lux @ (F1.8, AGC ON) |
Verschluss | 1/30s ~ 1/10000s |
Weißabgleich | Auto, Indoor, Outdoor, One Push, Manuell, VAR |
Gegenlicht-Kompensation | unterstützt |
Digitale Rauschreduktion | 2D & 3D digitale Rauschreduktion |
SNR | > 55 dB |
horizontaler Blickwinkel | 72.5° ~ 6.9° |
vertikaler Blickwinkel | 44.8° ~ 3.9° |
Schwenkbereich | ±170° |
Neigewinkel | -25° ~ +30° |
Schwenkgeschwindigkeit | 1.61° ~ 75.56°/s |
Neigegeschwindigkeit | 0.44° ~ 15°/s |
Image Flip | unterstützt |
Image Freeze | unterstützt |
Preset Einstellung | bis zu 255 |
Preset-Genauigkeit | 0,1° |
MIC Pick-up Entfernung | 6 m |
USB Merkmale |
|
unterstützte Betriebssysteme | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
Farbsystem / Komprimierung | MJPG/YUY2 |
Videoformat | YUY2 (ISOC): 1080p@60fps (max.) MJPEG: 1080p@60fps (max.) |
USB Audio | unterstützt |
USB Video Kommunikations-Protokoll | UVC 1.1 |
UVC PTZ | unterstützt |

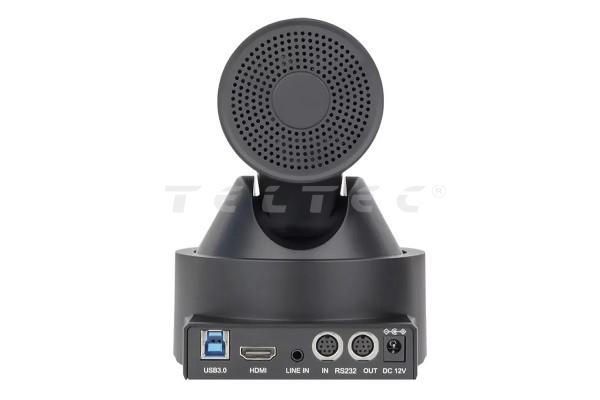

Schnittstellen |
|
USB-Schnittstelle | 1x USB 3.0 Typ B |
HDMI-Schnittstelle | 1x HDMI 1.4b |
Audio-Schnittstelle | 1 x LINE IN, 3.5mm 1 x RS232 IN: 8pin min DIN; max. Abstand: 30 m; Protokol: VISCA/Pelco-D/Pelco-P |
Kommunikations-Schnittstelle | 1 x RS232 OUT: 8pin min DIN; max. Abstand: 30m; Protokol: VISCA nur für den Netzwerkeinsatz |
Stromanschluss | DC In 12 V (JEITA) |
Allgemein |
|
Eingangsspannung | DC 12V |
Eingangsstrom | 1.5A (max.) |
Betriebstemperatur | -10°C ~ 40°C |
Lagertemperatur | -40°C ~ 60°C |
Stromverbrauch | 12 W (max.) |
Maße | 128 x 118 x 157,9 mm |
Gewicht | ca. 1 kg |
