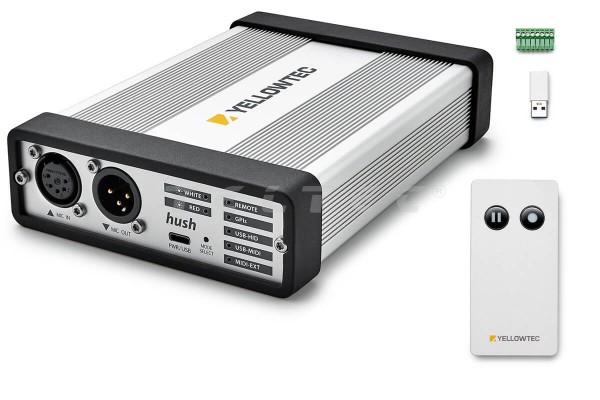

Yellowtec YT3901 m!ka Hush Bundle with Remote Control
zur Steuerung der OnAir-Signalisierung, für m!ka OnAir Mikrofonarme, inkl. hush Remote
Article number: 12312693
€489.00
Gross:€581.91
Das Yellowtec YT3901 m!ka Hush Bundle enthält einen hush OnAir Controller sowie eine... more
Product information "Yellowtec YT3901 m!ka Hush Bundle with Remote Control"
Das Yellowtec YT3901 m!ka Hush Bundle enthält einen hush OnAir Controller sowie eine hush Fernbedienung. Der hush OnAir Controller für die m!ka OnAir Mikrofonarme dient zur Steuerung der OnAir-Signalisierung. Zur Steuerung von hush gibt es insgesamt 5 Modi: per Fernbedienung, GPIs, USB-HID, USB-MIDI und über externes MIDI. Für die Steuerung ist die hush App herunterzuladen und den zu verwendenden Modus auszuwählen.
Hauptmerkmale
- Controller zur Steuerung der OnAir Signalisierung
- zur Kontrolle über OnAir Signalisierung in Form des LED-Signals
- entwickelt zur Steuerung des dual-color OnAir Indikators des m!ka Mikrofonarms

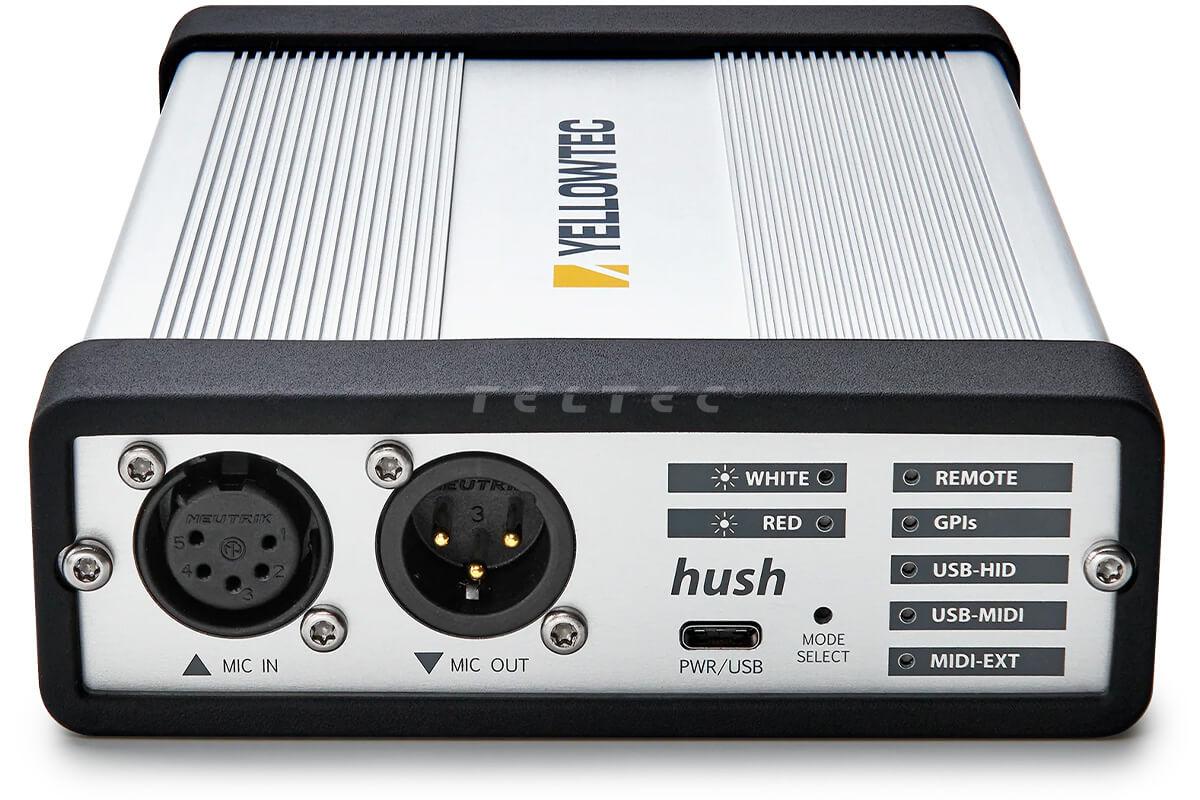

- Plug'n'play Konzept für dessen XLR-5-Stecker ermöglicht schnelle Inbetriebnahme
- Audiosignal wird unverarbeitet weitergeleitet (kein Preamp)
- lässt sich in unterschiedliche Setups integrieren Dank vielfältiger Modes
- Steuerung via hush Remote, GPIs, USB-HID oder MIDI (USB / Ext.)

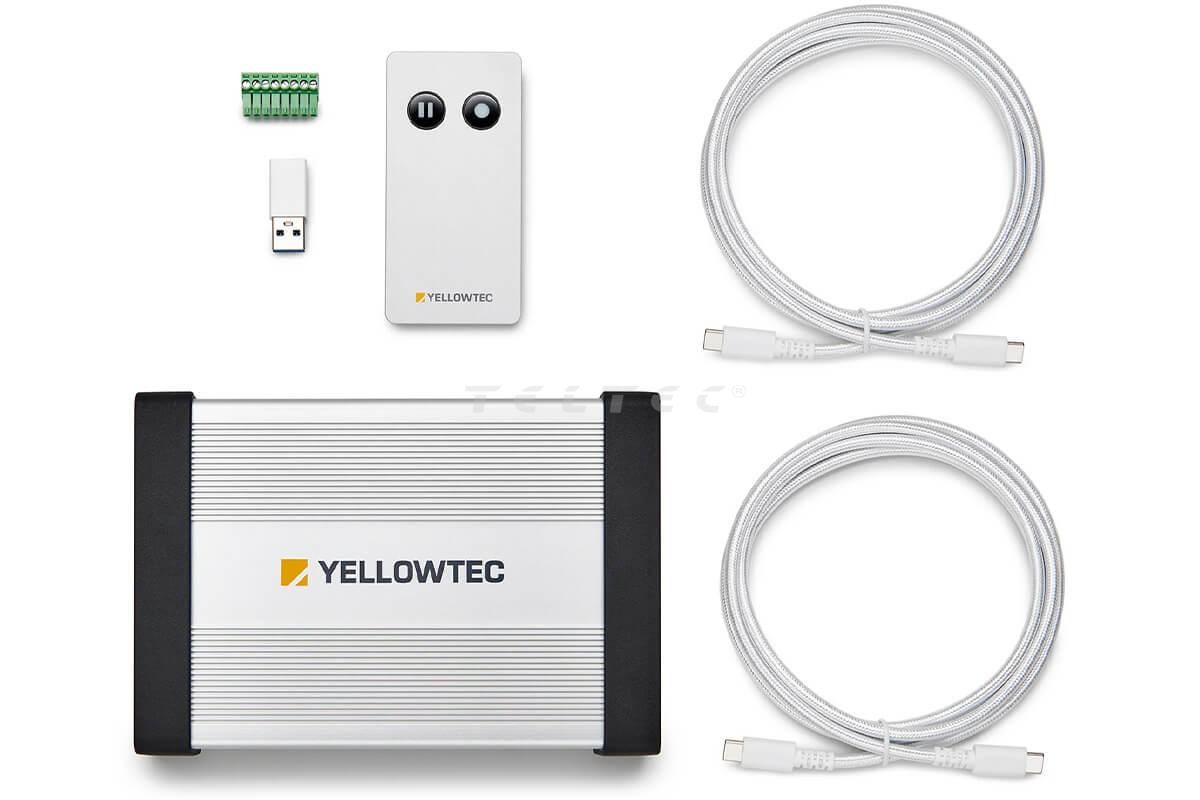

Lieferumfang
- 1x Yellowtec YT3901 m!ka Hush Bundle
beinhaltet:

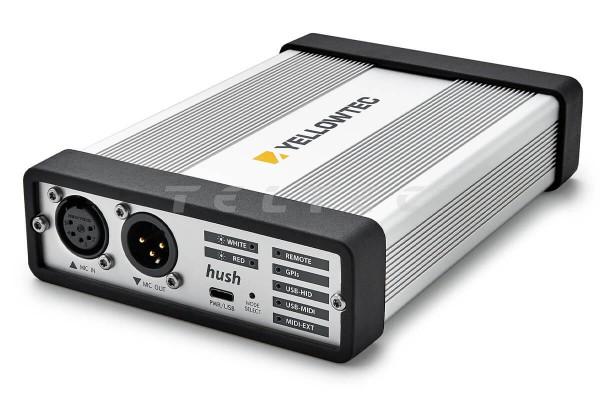

- 1x Yellowtec YT3903 m!ka hush OnAir Controller

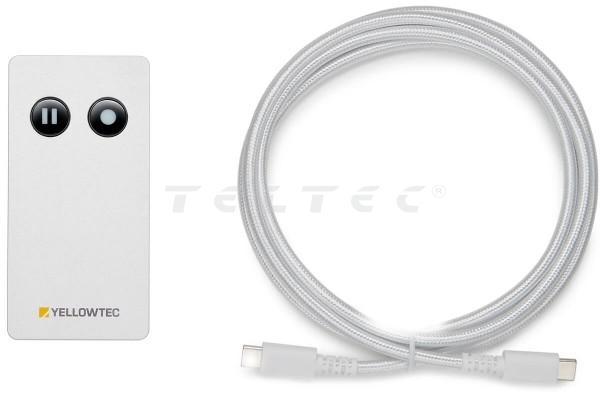

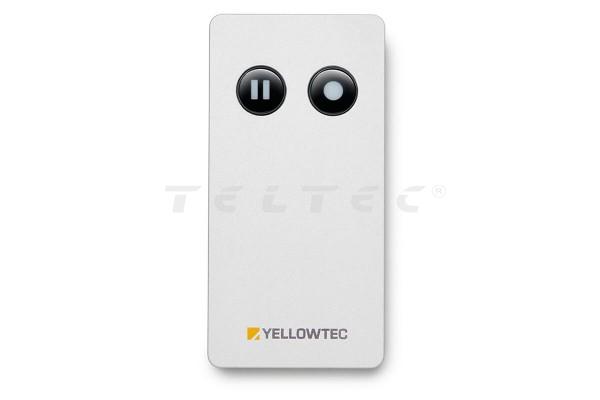

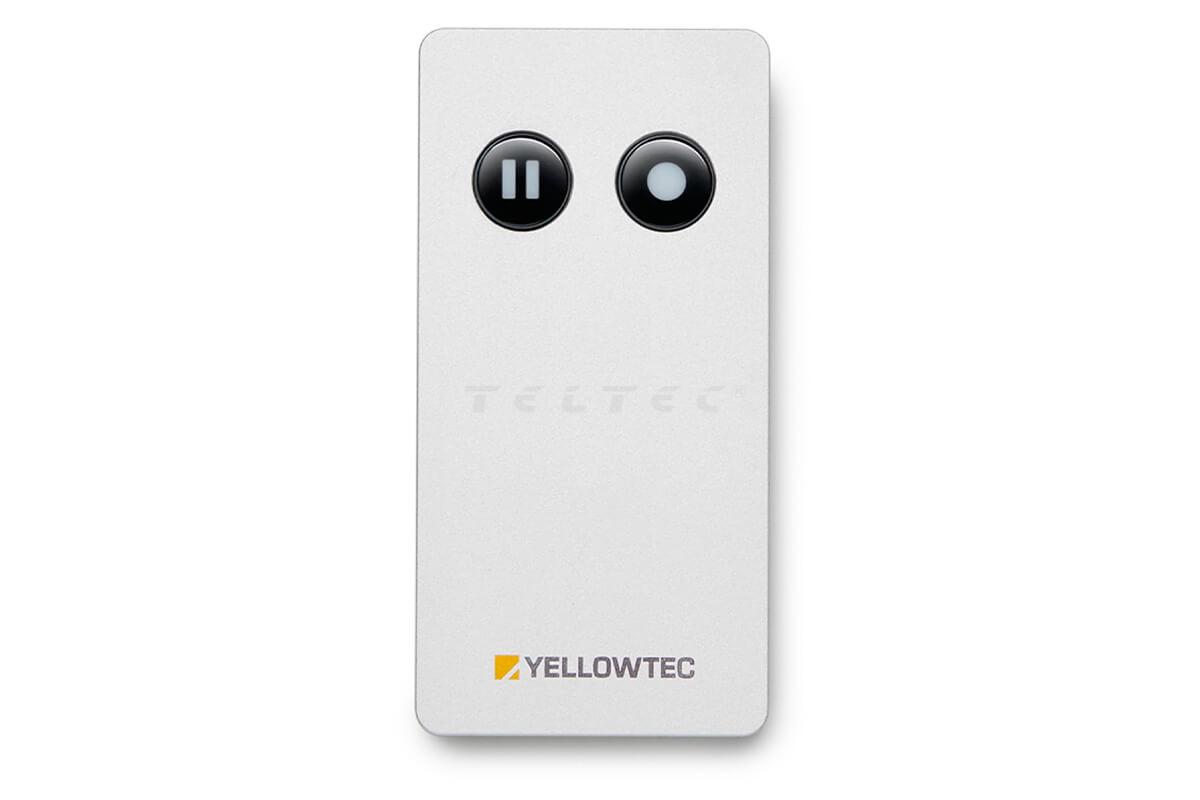

- 1x hush Remote
- 2x USB-C-Kabel
- 1x Adapter für GPI/Os
- 1x USB-C- auf USB-A-Adapter
Technische Daten
Mikrofon-Eingang |
|
Eingangsimpedanz | Mikrofoneingang (Loop-Through) |
Line-Ausgang |
|
Ausgangsimpedanz | Mikrofonausgang (Loop-Through) |
USB |
|
Anschluss | USB-C |
Kompatibilität | ≥ USB 1.1 - USB 2 (mit Netzteil) USB 3 (vollständig USB-gespeist) |
Datenrate | 12 MB/s |
Strom via USB |
|
Spannung | 4.5 V .. 5.5 V |
Stromstärke | typischerweise 500 mA / 900 mA max. |
Red Light Power @5-Pin XLR |
|
Ausgangsspannung | 12 V |
Ausgangsstrom | 40 mA |
Litt-Control |
|
Ausgangsspannung | 12 V |
Ausgangsstrom | 60 mA |
Modes zur Ansteuerung |
|
hush Fernbedienung | USB-C-Anschluss |
USB-HID | USB-C-Anschluss |

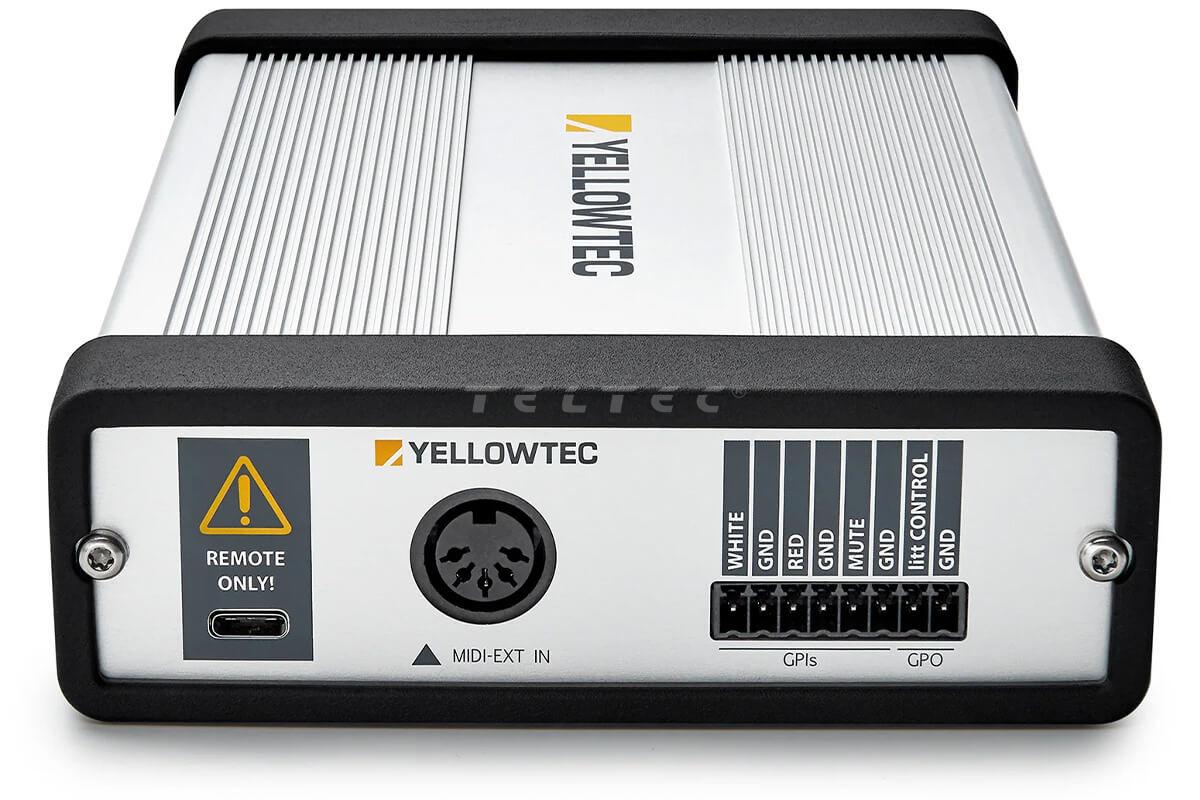

MIDI-In | Stromschleife: 10mA@5V Datenrate: 31,25 kBaud |
GPI | Typ: Switch to GND |
GPO | Typ: Open Collector Max. Spannung: + 30 V Max. Strom: 1,5 A |
Physikalische Eigenschaften |
|
Maße | 185 x 128 x 41 mm |
Gewicht | ca. 0,5 kg |
