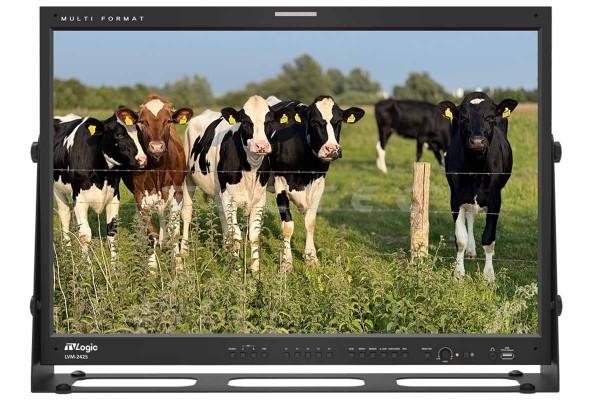

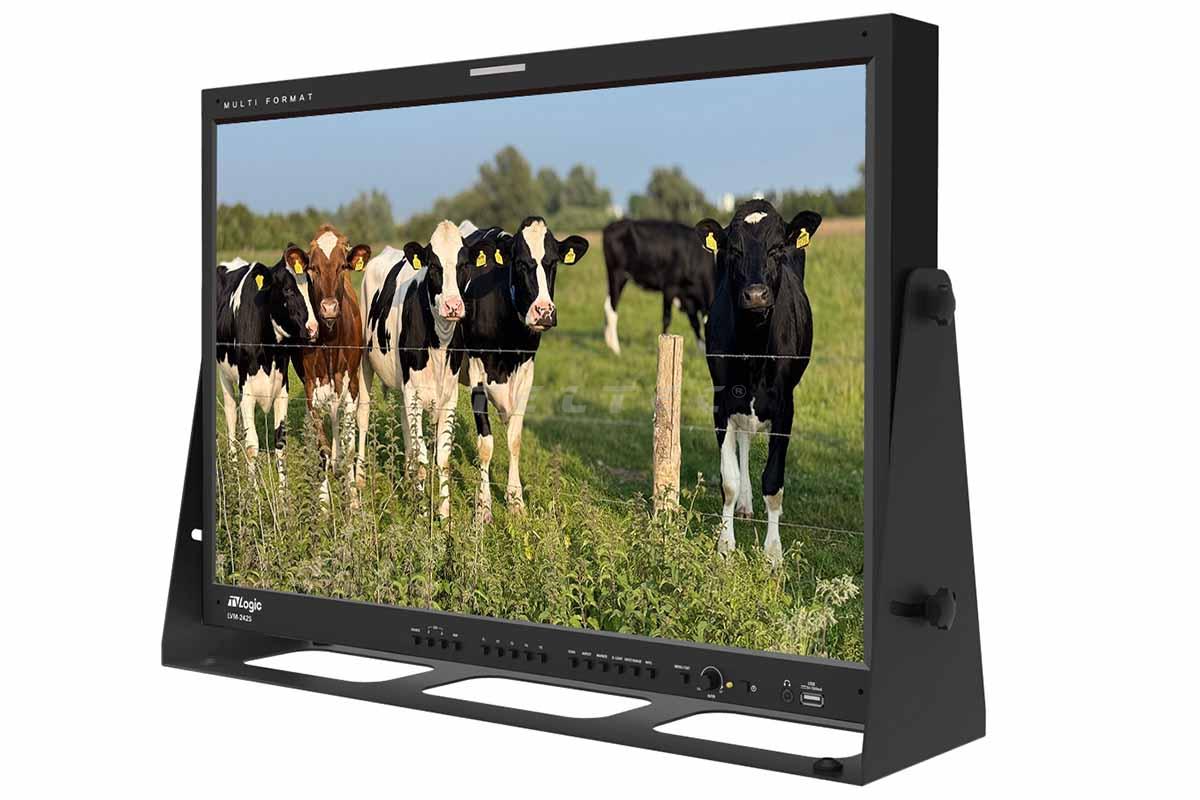

TVLogic LVM-242S
24" 1920x1200 (True 10-Bit) QC-Grade Super-IPS LCD Monitor
Article number: 12304773
€3,955.60
Gross:€4,707.16
MSRP*: €4,895.00
Promotion
-19%
Leasing:*
mthly €75.04
Der TVLogic LVM-242S ist ein 24" LCD Monitor mit 1920x1200 Auflösung... more
Product information "TVLogic LVM-242S"
Der TVLogic LVM-242S ist ein 24" LCD Monitor mit 1920x1200 Auflösung und 2x 3G/HD/SD-SDI Ein- und Ausgängen, DVI-I- und HDMI-Eingang sowie Component/Composite-Ein-/Ausgang.
Hauptmerkmale
- 24" Full HD Auflösung (1920×1200)
- 1,07 Milliarden Farben (10-Bit)
- 98 % Abdeckung des DCI-P3-Farbraumes
- HDR Emulation (PQ, HLG, SLOG3)
- Picture-by-Picture
- Benutzerdefinierter 3D LUT Import über USB-Stick
- verschiedene integrierte Kamera LUTs
- Ember+ -Protokoll-Support
- Fast Mode
- Waveform / Vectorscope (Advanced)
- 16ch Audio Level Meter
- Dual Markers (Main&Sub)
- Timecode Display
- Dynamic UMD
- User Aspect
- mehrere Scan Modi
- Closed Caption (CC-608/708, CC-KOR, OP47)
- Focus Assist
Lieferumfang
- 1x TVLogic LVM-242S
- 1x AC Stromkabel
- 1x Ständer
Garantie
- 2 Jahre Herstellergarantie
Technische Daten
Allgemein |
|
Größe | 24" |
Auflösung | 1920 x 1200 (16:10) |
Pixelpitch | 0,270 (H) x 0,270 (V) mm |
Farbtiefe | 1,07 Milliarden Farben |
Helligkeit (maximal) | 400 cd/m² |
Kontrastverhältnis | 1800:1 |
Anzeigebereich | 518,4 (H) x 324,0 (V) mm |
Eingänge |
|
2x BNC | SDI A/B Channel Eingang |
1x HDMI | HDMI Eingang |
3x BNC | Analog Eingang |
1x DVI-I | DVI-I(RGB) Eingang |
Ausgänge |
|
2x BNC | SDI A/B Channel (Loop Through Out) |
3x BNC | Analog Ausgang |
Eingangssignal |
|
3G-SDI | 2,970 Gb/s |
HD-SDI | 1,485 Gb/s |
SD-SDI | 270 Mbps |
Analog | CVBS / Component / RGB |
DVI-D (PC Modus) | 640x480/800x600/1024x768/1366x768 |
DVI-D (HDMI Modus) | 1080i(60) / 720i(60) / 480i(60) / 480p(50) |
HDMI | 480i(60) / 480p(60) / 576i(50) / 576p(50) / 720p(60) / 1080i(60) / 1080p(60) |
Spezifikation des Analog-Eingangs |
|
CVBS | 1.0Vpp (mit Sync) |
Component | 1.0Vpp (Y mit Sync), 0.7Vpp (Pb,Pr) |
RGB | 1.0Vpp (G mit Sync), 0.7Vpp (B,R) |
SDI-Eingangssignalformat |
|
SMPTE ST-425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98 /30sF/29.97sF/25sF/24sF/23.98sF) 1080i (60/59.94/50) |
SMPTE ST-274M | 1080p (30/29.97/25/24/24sF/23.98/23.98sF) 1080i (60/59.94/50) |
SMPTE ST-296M | 720p (60/59.94/50) |
SMPTE ST-260M | 1035i (60/59.94) |
SMPTE ST-125M | 480i (59.94) |
ITU-R BT.656 | 576i (50) |
2K Format | 2048 x 1080(23.98p/psf, 24p/psf) |
Weitere Spezifikationen |
|
Audio Eingang | Embedded Audio / Analog Stereo (Klinkenstecker) |
Audio Ausgang | Analog Stereo (Klinkenstecker), Interner Kopfhörer (Stereo) |
Strom | DC 12~24V / AC100~240V(50~60Hz) |
Abmessungen | 552,5 x 389 x 98,5 mm (ohne Ständer) |
Gewicht | 10,68 kg |
Consultation
Media
Related links to "TVLogic LVM-242S"
The following info about the manufacturer is available...... more
TVLogic
TVlogic ist ein führender Entwickler und Hersteller von High-Performance 4K, FullHD und HD-Video Equipment für den digitalen Rundfunk und professionellen Videomarkt.
Gegründet im März 2002, setzt TVlogic konsequent auf Qualität und Stabilität. Die überragende Bildqualität der High-End-Geräte für Broadcast basiert auf der von TVlogic entwickelten Technologie.
