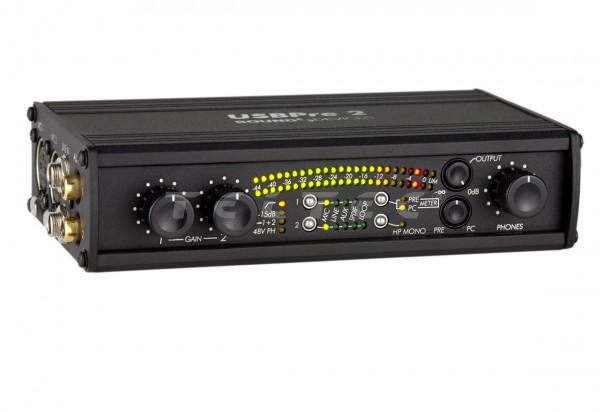

Sound Devices USB-Pre 2

Der Sound Devices USBPre 2 ist eine hochauflösende, tragbare Hardwareschnittstelle für Mac und Windows-basiertes digital Audio. Der USBPre-2 ist der branchenweit die höchste Performance und flexibelste portable Schnittstelle für professionelle Mikrofone, Line-Pegel-Quellen, Audio Unterhaltungselektronik und S/PDIF digitalen Quellen mit Mac OS und Windows-Computern über eine USB Schnittstelle.

Hauptmerkmale

• Extended bandwidth, low-noise microphone preamplifiers with 48 V phantom, limiters, high-pass filters, and 15 dB pad
• Dynamic range greater than 114 dB (in 24-bit operation)
• Flat 10 Hz to 40 kHz (@96 kHz SR) audio bandwidth with very low distortion characteristics
• Each input individually selectable between microphone, line, and aux level signals (both channels selected simultaneously for S/PDIF connections)
• Precision, 23-segment, multicolor LED peak/VU meter, selectable between input and output sources
• High-output headphone amplifier can drive a wide range of headphones
• Balanced outputs on XLR connectors with dedicated level control can be used to drive line- or mic-level inputs
• Mix control enables zero-delay monitoring of source audio, computer audio, or a mix of both source and computer audio for multitrack recording or computer telephony
• Phono (RCA) jacks connect Aux Output to external loudspeakers or preamplifiers
• Bus powering via USB for convenient, single-cable connection to the computer
• In Stand-Alone mode the USBPre 2 operates as a microphone preamplifier and analog-to-digital converter
• Hardware loop-through for test & measurement to send computer audio directly back to an input
• High-strength extruded aluminum chassis
• Mac® OS X 10.4+, Windows®XP/Vista/7, and Linux, class-compliant audio device
• Additional features controlled by hardware DIP switches on the back panel; no software-only features and no control panel
