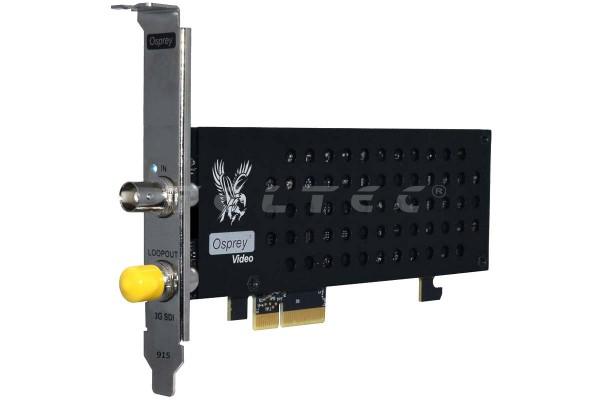

Osprey 915 SDI Video Capture 1x 3G-SDI
SDI Video Capture-Karte mit 1x 3G-SDI
Article number: 12283557
Die Osprey Raptor 915 Capture Karte bietet einen SDI Input mit Loopout und... more
Product information "Osprey 915 SDI Video Capture 1x 3G-SDI"
Die Osprey Raptor 915 Capture Karte bietet einen SDI Input mit Loopout und unterstützt bis zu 60fps. Der SDI Port funktioniert mit SD, HD und 3G Framegrößen und unterstützt 16 Audiokanäle (8 Stereokanäle).
Hauptmerkmale
- PCIe Capture Card
- SDI Input mit 3Gb/s
- SDI Input x 3Gb/s SD/HD/3G-A (Full Size BNC)
- Loopout x 3Gb/s SD/HD/3G-A (Full Size BNC)
- 16 Audiokanäle (8 Stereokanäle)
- Closed Caption Unterstützung (Untertitel)
- Wasserzeichen Overlay
- Skalierung
- Framerate Konvertierung
- SimulStream
Lieferumfang
- 1x Osprey Raptor 915 Capture Karte
- 1x PCI Bracket - ganze Höhe
- 1x PCI Bracket - halbe Höhe
Technische Daten
PCI Format | PCI Express Gen2 (4x) Slots: x4, x8 oder x16 |
Anschlüsse | 1x SDI Input x 3Gb/s SD/HD/3G-A (Full Size BNC) 1x Loopout x 3Gb/s SD/HD/3G-A (Full Size BNC) |
SDI Audio Inputs | Eingebettete 16 Kanäle (8 Stereo) pro Anschluss |
Video Standards | 525i 59.94 NTSC, 625i 50 PAL 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080psf 23.98, 24, 25, 29.97, 30 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i 50, 59.94, 60 |
SDI Konformität | SMPTE 259/292/296/424/425 Nur 3G-SDI Level A |
SDI Metadaten Unterstützung | CEA-608, CEA-708 für Untertitel |
Audio Sampling | Television Standard - 48 kHz bei 24-bit |
SDI Farbgenauigkeit | 8, 10, 12-bit RGB 4:4:4, YUV 4:4:4 und 4:2:2 |
