Nanlite MixPanel 60
Dimmbare 64 W RGBWW LED Leuchte
Article number: 12303307
Die Nanlite MixPanel 60 LED Flächenleuchte ist die perfekte Lösung zur... more
Product information "Nanlite MixPanel 60"
Die Nanlite MixPanel 60 LED Flächenleuchte ist die perfekte Lösung zur kreativen Gestaltung von Foto- und Videoaufnahmen im Studio, im Home-Office oder unterwegs. Das blendfreie Weißlicht eignet sich besonders für Porträt, Interview, Social Media-Aktivitäten, Vlogging, Videokonferenzen, Webinare sowie Still-Life-, Tabletop- und Makroaufnahmen.
Hauptmerkmale
- Betriebsmodi: Weißlicht-, RGBW-, GEL- und Effekt-Mode
- Speicherung von Lichteinstellung möglich
- drei Leistungsmodi einstellbar: Silent, Normal und Boost
- Netz- und Akkubetrieb möglich
- Funk, DMX und APP-Steuerung möglich
- kompletter RGB Farbraum darstellbar
- HSI Control (Hue Saturation Intensity) zur Einstellung des Farbtons, der Farbsättigung und der Farbintensität
- CCT Mode (Correlated Color Temperature)
- dimmbar, gleichmäßige Dimmung, von 0 - 100% (in 1% Schritten), ohne Farbveränderung
- erzeugt sanftes, blendfreies Licht oder gerichtetes, helles Licht oder farbiges Licht
- 10 vorprogrammierte anpassbare Lichteffekte (HUE/CCT Loop, Flash, Pulse, Storm, Siren, TV, Paparazzi, Candle, Fire)
- 43 verschiedene Lee und Rosco Color Gel Presets
- Speicherung von bis zu 8 Benutzer Presets auf separaten Funktionstasten möglich
- integriertes 2,4 GHz WiFi und DMX Modul

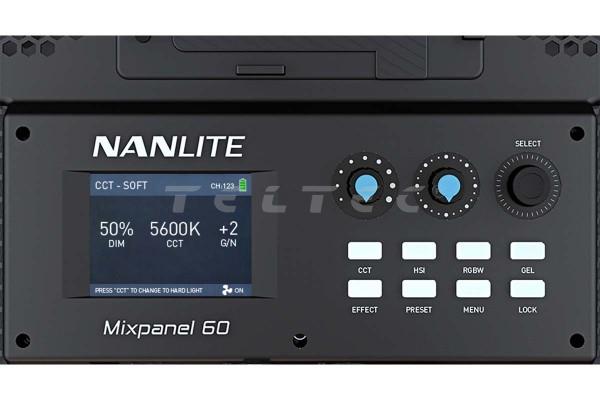

- OLED Farb Display zur Anzeige von Farbwert, Farbtemperatur, Helligkeit, Effekten und Akkustand
- Steuerung über Bedienelemente an der Leuchte, optionale Funkfernbedienung oder über WiFi mit mobilen Geräten (z.B. Smartphone oder Tablet)
- zweistufige aktive Kühlung, abschaltbar (dadurch reduzierte max. Helligkeit)
- Firmware Updates über USB
- Spannungsversorgung durch Netzteil oder optionalen 14,4 - 14,8 V V-Mount Akku

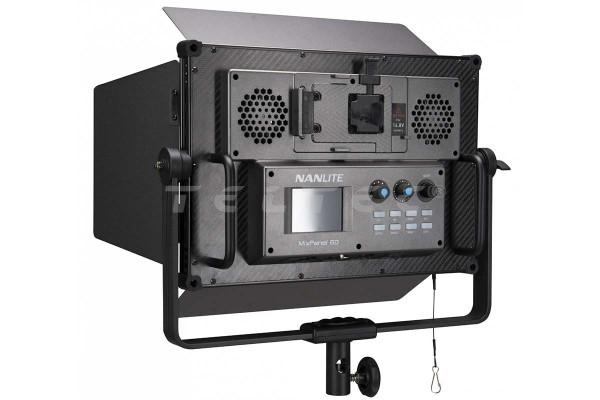

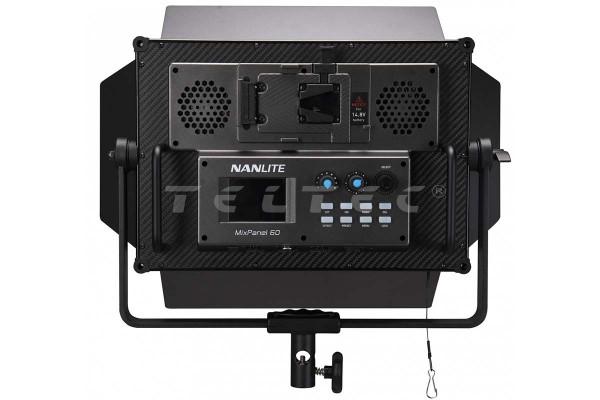

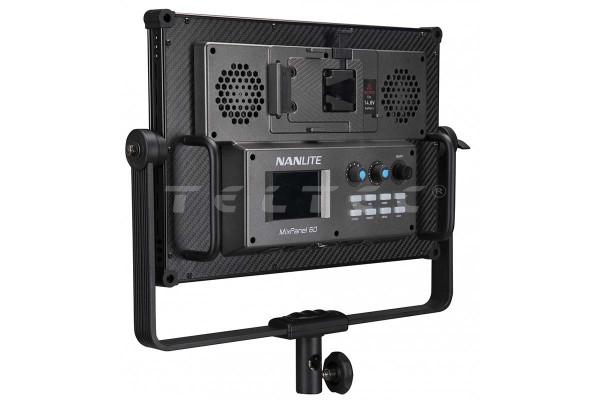

- integrierter V-Mount
- robustes Aluminium- Kunststoffgehäuse mit Haltegriffen, Rückseite mit Carbon-Optik

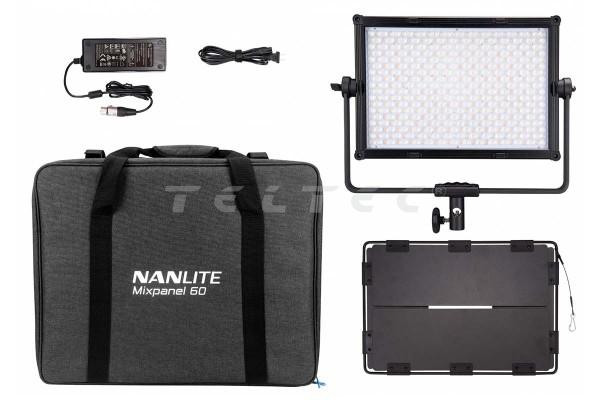

Lieferumfang
- 1x Nanlite MixPanel 60 LED Flächenleuchte

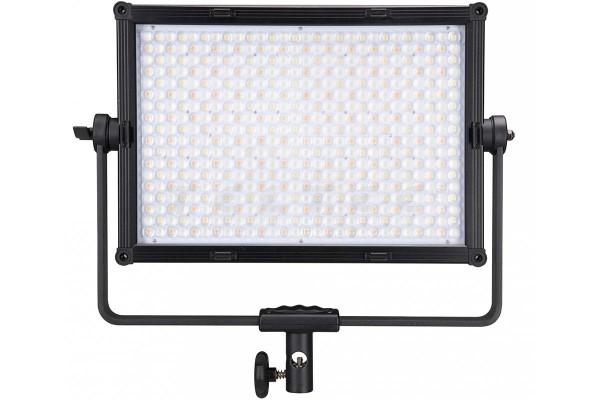

- 1x Haltebügel mit 16 mm Zapfen
- 1x Netzteil mit Kabel

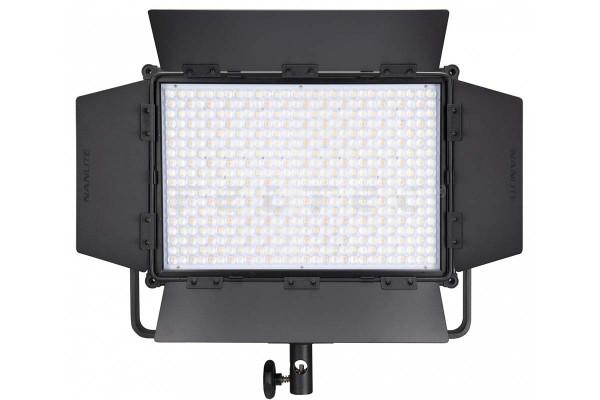

- 1x 4-fach Flügeltor
- 1x Transporttasche
Technische Daten
Leuchtfläche | 31,6 x 20,8 cm |
CRI | > 98 |
TLCI | > 95 |
Farbtemperatur | 2700 - 7500 K (in 100 K Schritten) |
Grün-/Magenta-Korrektur | -50 bis +50 |
Helligkeit | 5808 Lumen @ 7500 K |
Lichtintensität | 2700 K: 1 m: 4.756 Lux. 2 m: 1.290 Lux, 3 m: 596 Lux, 4 m: 345 Lux, 5 m: 230 Lux 3200 K: 1 m: 5.438 Lux. 2 m: 1.485 Lux, 3 m: 690 Lux, 4 m: 395 Lux, 5 m: 260 Lux 5600 K: 1 m: 5.844 Lux. 2 m: 1.574 Lux, 3 m: 729 Lux, 4 m: 420 Lux, 5 m: 280 Lux 7500 K: 1 m: 5.695 Lux. 2 m: 1.534 Lux, 3 m: 707 Lux, 4 m: 410 Lux, 5 m: 270 Lux Rot: 1 m: 1.600 Lux, 2 m: 429 Lux, 3 m: 198 Lux, 4 m: 115 Lux, 5 m: 75 Lux Grün: 1 m: 3.613 Lux, 2 m: 958 Lux, 3 m: 444 Lux, 4 m: 260 Lux, 5 m: 175 Lux Blau: 1 m: 690 Lux, 2 m: 185 Lux, 3 m: 85 Lux, 4 m: 50 Lux, 5 m: 35 Lux |

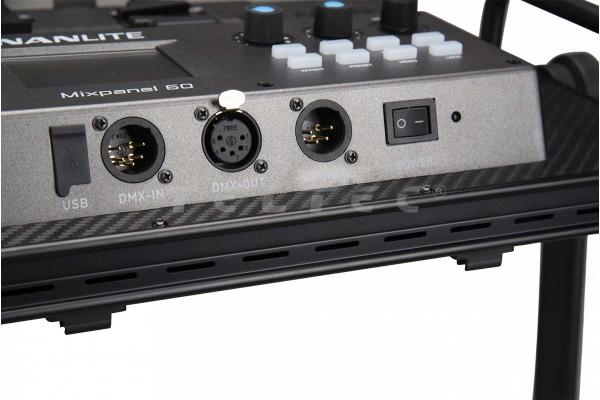

Anschlüsse | 1x DMX In, XLR 5-polig (M) 1x DMX Out, XLR 5-polig (F) 1x USB (für Firmware Updates) 1x DC In 15 V, XLR 4-polig (M) 1x V-Mount |
Spannungsversorgung | DC In 15 V (XLR 4-polig (M)) oder V-Mount Akku |
Leistungsaufnahme | 64 W |
Netzteil | AC In 100 - 240 V, 50/60 Hz 3 A, DC Out 15 V, 0,6 A |
Maße | 426 x 370 x 82 mm |
Gewicht | 3,3 kg |
