Hollyland Pyro 7 Ultra

7" TX/RX-Funkmonitor mit QD-LCD und 1 km Reichweite

Article number: 12354467
€1,199.00
Gross:€1,426.81
Delivery time:
Please inquire about the delivery date
Please inquire about the delivery date
Add to wishlist
Der Hollyland Pyro 7 Ultra ist ein 7" Funkmonitor , der Sender, Empfänger und Monitor in... more
Product information "Hollyland Pyro 7 Ultra"

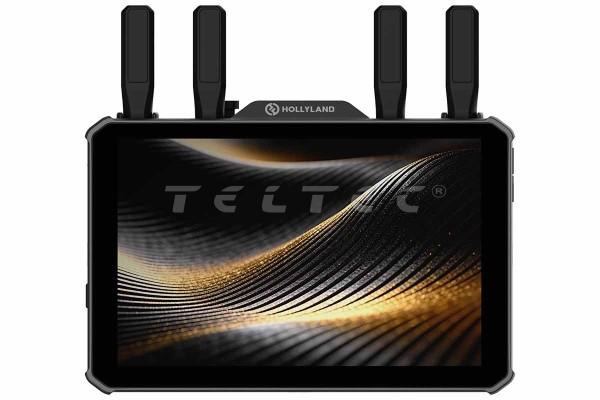

Der Hollyland Pyro 7 Ultra ist ein 7" Funkmonitor, der Sender, Empfänger und Monitor in einem Gerät kombiniert. Das QD-LCD-Display mit 1.500 Nits Helligkeit bietet eine hohe Farbgenauigkeit mit einem ΔE-Wert von ≤ 1,5 und eignet sich für professionelle Monitoring-Anwendungen. Dank der TWiFi-Technologie ermöglicht der Pyro 7 Ultra eine drahtlose Videoübertragung mit einer Reichweite von bis zu 1 km. Das Gerät kann sowohl als Sender für das On-Camera-Monitoring als auch als Empfänger für mobiles Monitoring eingesetzt werden. Der Fokus-Modus ist auf Anwendungen wie präzises Focus Pulling ausgelegt, während die Unterstützung von 1 Sender und unbegrenzt vielen Empfängern flexible Monitoring-Setups ermöglicht.

Hauptmerkmale

  • All-in-One-System aus Sender, Empfänger und Monitor
  • 7,02" QD-LCD-Touchscreen
  • Auflösung von 1920 x 1200 Pixeln
  • Helligkeit von 1.500 Nits
  • Farbgenauigkeit mit ΔE ≤ 1,5
  • Fokus-Modus
  • TWiFi-Übertragungstechnologie
  • Übertragungsreichweite bis 1 km
  • 1 Sender und unbegrenzt viele Empfänger
  • HDMI 2.0 und 3G-SDI

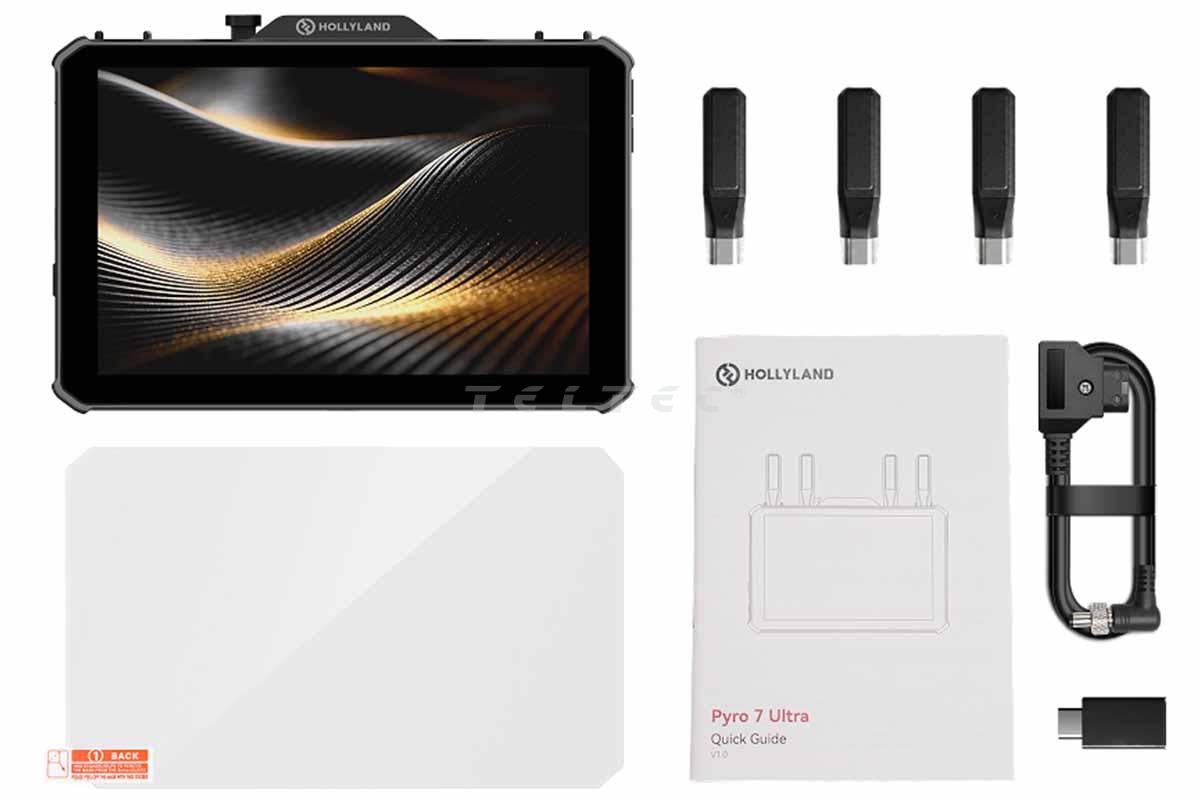

Lieferumfang

  • 1x Hollyland Pyro 7 Ultra
  • 4x Hollyland Schnellmontage-Kurzantenne
  • 1x Hollyland Displayschutz aus Panzerglas
  • 1x Hollyland D-Tap-auf-DC-Adapterkabel mit Verriegelung
  • 1x Hollyland USB-C-OTG-Adapter

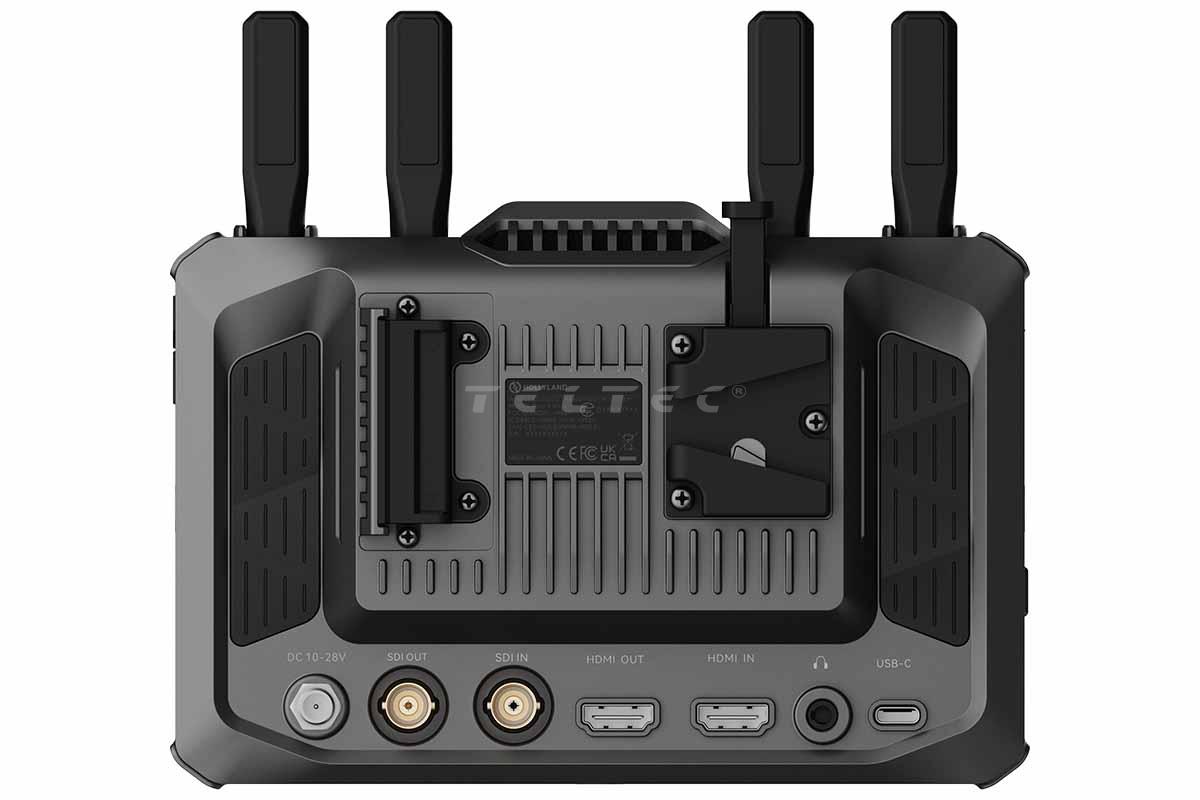

Technische Daten

Video-Ein-/-Ausgang
  • HDMI 2.0 (p)
  • 3G-SDI (p/i)
Antennen-Schnittstelle 4x SMA Male
Stromanschluss DC-Eingang (2 mm) / V-Mount-Akku
Monitoring 3,5 mm Kopfhörerbuchse
Datenübertragung USB-C (2.0)
Bildschirmgröße 7,02" Touchscreen
Auflösung 1920 x 1200
Seitenverhältnis 16:9
ΔE ≤ 1,5
Farbraum
  • Rec. 709 ≥ 99 %
  • DCI-P3 ≥ 95 %
Kontrastverhältnis 1000:1
Helligkeit 1.500 Nits
Nennspannung 10 ~ 28 V
Leistungsaufnahme
  • TX ≤ 25 W
  • RX ≤ 20 W
Betriebsfrequenz
  • 5,1 - 5,8 GHz
  • 2,412 - 2,484 GHz
Übertragungsleistung < 24 dBm
Empfindlichkeit am Empfänger > - 80 dBm
Display-Latenz > 27 ms
Übertragungs-Latenz > 20 ms
Reichweite 1 km
Bandbreite 20 MHz / 40 MHz (Broadcast Modus)
Betriebstemperatur - 10 °C ~ 45 °C
Lagertemperatur - 40 °C ~ 60 °C
Maße 18 x 11,6 x 4,62 cm (inkl. Akkuplatte)
Gewicht ca. 630 g
