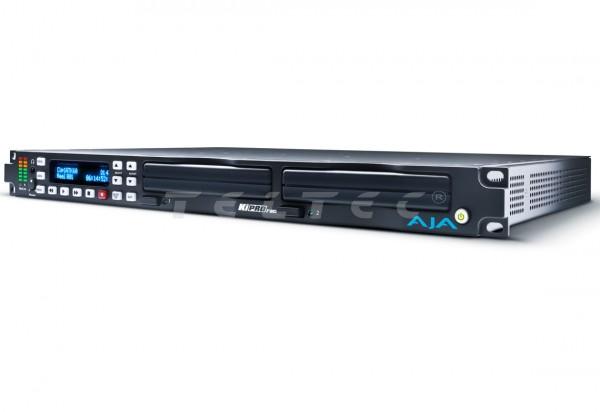

AJA Ki Pro Rack

Article number: 12245057

€3,109.00

Gross:€3,699.71

MSRP*: €3,550.13

plus shipping costs

Promotion -12%

Leasing:* mthly €59.20

Calculate individually

Delivery time:

3-5 business days from the date of order

Alternatives in stock

Add to wishlist

Mit dem Ki Pro Rack reagiert AJA auf eine längst gängige Praxis: bei vielen Sendern... more

Close menu

Product information "AJA Ki Pro Rack"

Mit dem Ki Pro Rack reagiert AJA auf eine längst gängige Praxis: bei vielen Sendern finden sich in den Geräteräumen oftmals Ki Pro-Recorder, die zu ganz unterschiedlichen Zwecken verwendet und mehr oder weniger elegant in die 19-Zoll-Geräteracks eingebaut werden. Mit Ki Pro Rack gibt es nun eine Version des Ki Pro Mini, die für 19-Zoll-Racks vorgesehen ist. Ki Pro Rack bietet im Unterschied zum Ki Pro zusätzlich zwei Einschüben für SSD Medien.

Hinweis

Auslieferung ohne Storage Modul!

Hauptmerkmale

Direkt aufnehmen auf HD in ProRes und ProRes HQ und DNxHD
Zwei Einschübe für SSD Medien
Zwei Netzteile intern
Einbauhöhe 1RU
Festplatte über Firewire direkt am Mac mounten und in FinalCut schneiden
250GB und 500GB HDs, 120GB und 300GB SSDs erhältlich
Einfachste Bedienung, wie eine kleine MAZ
SDI, HDMI und Komponenten Anschlüsse
Nimmt auf HD und SSD auf
Up-, Down- und Crossconversion
Komplett über LAN und W-LAN steuerbar

Garantie

3 Jahre Herstellergarantie

Technische Daten

Video Input	1080i 25, 29.97, 30 1080PsF 23.98, 24, 25, 29.97 1080p 23.98, 24, 25, 29.97 720p 23.98, 25, 29.97*, 50, 59.94, 60 625i 25 525i 29.97
Codec Support	Apple ProRes 422 Apple ProRes 422 (HQ) Apple ProRes 422 (LT) Apple ProRes 422 (Proxy) Avid DNxHD 220x Avid DNxHD 145 Avid DNxHD 36, only provides support for the 1080p format
Removable Storage	AJA Ki Stor modules - 2 slots with rollover recording
Video Input Digital	SD/HD SDI, SMPTE-259/292/296, 10-bit Single Link 4:2:2 (2 x BNC, input selection in software) HDMI v1.3
Video Input Analog	SD/HD Component (3 x BNC) SMPTE/EBU N10, Betacam 525 line, Betacam 525J 12-bit A/D, 2 x oversampling +/- .25 dB to 5.5 mHz Y frequency response +/- .25 dB to 2.5 mHz C frequency response .5% 2T pulse response <2 ns Y/C delay inequity, or Composite (1 x BNC - CVBS on Y)
Video Output Digital	SD/HD SDI, SMPTE-259/292/296, 10-bit Single link 4:2:2 (1 x BNC) HDMI v1.3 Note: HDMI requires 1080i, 720p or 1080p to be active; HDMI does not provide support for PsF
Video Output Analog	Component (3 x BNC) NTSC, NTSCJ, PAL HD: YPbPr, RGB SD: YPbPr, RGB (component mode) SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB 12-bit D/A, 8 x oversampling +/- .2 dB to 5.5 mHz Y frequency response +/- .2 dB to 2.5 mHz C frequency response .5% 2T pulse response <1 ns Y/C delay inequity, or Composite (1 x BNC - CVBS on Y) +/- .2 dB to 5.0 mHz Y frequency response +/- .2 dB to 1 mHz C frequency response <1% Diff Phase <1% Diff Gain
Audio Input Digital	8-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous 8-Channel, 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (4 x BNC)
Audio Input Analog	2-Channel, 24-bit A/D analog audio, 48 kHz sample rate, balanced (2 x XLR) +24dbu full scale digital +/- 0.2db 20 to 20 kHz frequency response (Note: Line or Mic selection via CONFIG menu parameters)
Audio Output Digital	8-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous 8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous 8-Channel, 24-bit AES/EBU audio, synchronous or nonsynchronous, internal sample rate conversion (4 x BNC)
Audio Output Analog	2-Channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced (2 x XLR) +24dbu full scale digital (0dbFS) +/- 0.2db 20 to 20 kHz frequency response Stereo unbalanced headphone (1 x 3.5mm mini jack)
Up-Conversion	Hardware 10-bit Anamorphic: fullscreen Pillarbox 4:3: results in a 4:3 image in center of screen with black sidebars Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars Zoom Letterbox: results in image zoomed to fill fullscreen Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change
Down-Conversion	Hardware 10-bit Anamorphic: fullscreen Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved Crop: image is cropped to fit new screen size
Cross-Conversion	Hardware 10-bit 1080i to 720p 720p to 1080i
Timecode	SDI RP188/SMPTE 12M via SDI BNC HDMI (when used with compatible cameras) LTC Input (1 x BNC) LTC output (1x BNC) (Note: active during playback not during record or EE)
Reference Input	Analog Color Black (1V) or Composite Sync (2 or 4V) Looping, nonterminating
Network Interface	10/100/1000 Ethernet (RJ-45) Embedded web server for remote control
User Interface	2 x 20 character display, with dedicated buttons
Closed Captioning Support	CEA-708, CEA-608
Machine Control	RS-422, Sony 9-pin protocol (via DB-25 breakout cable or optional KLHi-Box) 9-pin D-connector pinout is as follows:
Size (w x d x h)	482.6mm x 377.4mm x 44.5mm
Weight	3.4 kg
Power	100-240 VAC 50/60 Hz, dual, redundant power supplies, 40W typical
Environment	Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F) Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
