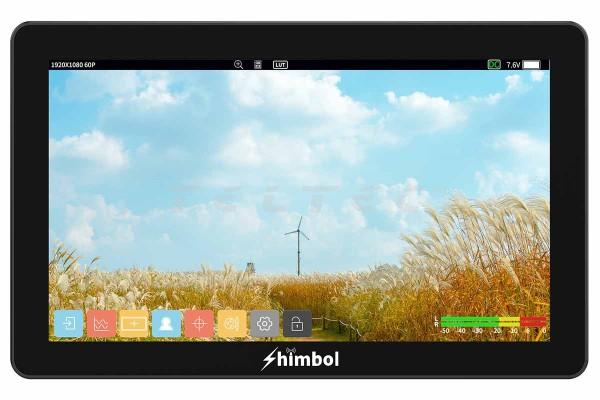

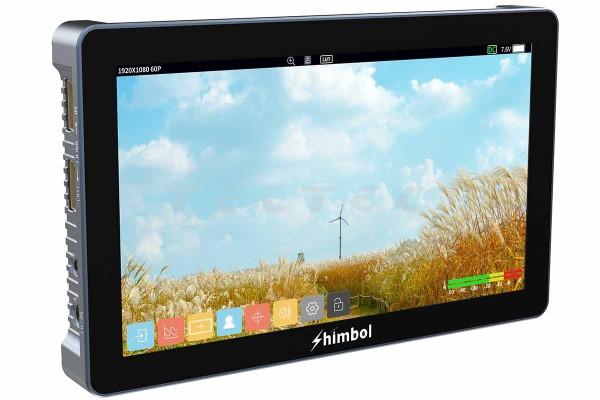

Shimbol M7
7" 1920 x 1080 Touchscreen 3D LUT 4K HDMI/3G-SDI On-Camera Monitor
Article number: 12318026
€379.00
Gross:€451.01
Das Shimbol M7 ist ein professioneller 4K HDMI -/3G-SDI-On-Camera-Touchscreen-Monitor mit... more
Product information "Shimbol M7"
Das Shimbol M7 ist ein professioneller 4K HDMI -/3G-SDI-On-Camera-Touchscreen-Monitor mit 3D-LUT-Ausgabe. Der 7"-Videomonitor zeichnet sich durch eine Bildschirmhelligkeit von 2.000 cd/m² aus, hat eine Auflösung von 1920x1080 und verfügt über SDI- und HDMI- Ein- und Ausgänge. Weiterhin werden verschiedenste Funktionen, wie Luma Waveform, RGB Parade, Vectorscope, Histogramm uvm. unterstützt.
Hauptmerkmale
- 7" Touchscreen 3D LUT 4K HDMI/3G-SDI Videomonitor
- 3D-LUT-Ausgabe
- Bildschirmauflösung 1920x1080
- Helligkeit 2.000 cd/m²
- 4K30 HDR Monitoring mit integriertem HLG-Modus
- 3G-SDI In/Out
- benutzerdefinierte 3D-LUT
- CNC Metallrahmen
- Funktionen wie Luma Waveform, Vectorscope, Histogramm, Zebra-Muster, uvm.
Lieferumfang
- 1x Shimbol M7
- 1x SD-Karte (32 GB)
- 1x gehärteter Displayschutz
- 1x HDMI-Kabel
- 1x SDI-Kabel
- 1x Blitzschuhhalterung
- 1x Reinigungstuch
- 1x Color Box
- 1x Transportkoffer
Garantie
- 1 Jahr Herstellergarantie
Technische Daten
Bildschirmgröße | 7" Touchpanel |
Auflösung | 1920x1080 |
Kontrastverhältnis | 1800:1 |
Seitenverhältnis | 16:9 |
Helligkeit | 2.000 cd/m² |
Color Gamut | DCI-P3 / Delta E<1 |
Bildwinkel | 170° (H/V) |
Schnittstellen |
|
Art der Stromversorgung/Spannung |
|
Spannung | DC 7 - 16 V |
Stromverbrauch | < 10 W |
HDMI Eingabeformat |
|
SDI Eingabeformat |
|
HDMI Ausgabeformat |
|
SDI Ausgabeformat |
|
LUT-Format | Cube (17*17*17/33*33*33) |
LUT-Ausgabe | HDMI & SDI Support |
Gehäuse | CNC Aluminiumlegierung |
Audiofrequenz | 48 kHz |
Betriebstemperatur | - 10 °C ~ 40 °C |
Lagertemperatur | - 20 °C ~ 60 °C |
Maße | 178,8 x 110,8 x 28,3 mm |
Gewicht | ca. 453 g |
