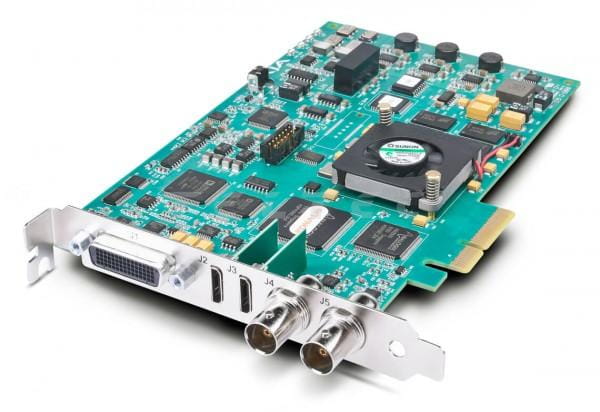

AJA KONA LHi Mac/Win

3G/HD/SD SDI input/output auch für Media Composer

AJA KONA LHi Mac/Win
Artikelnummer: 12235496
€ 1.584,03
Brutto:€ 1.885,00
UVP*: 1.867,18 €
Aktion -15%
Die AJA KONA LHi Karte bietet alle Möglichkeiten: Egal ob SD/HD analog ,... mehr
Produktinformationen "AJA KONA LHi Mac/Win"

Die AJA KONA LHi Karte bietet alle Möglichkeiten: Egal ob SD/HD analog, HDMI v1.3a, SD-SDI bis hoch zu 1080p (50P/60P) oder 10 Bit Broadcast-taugliches Cross-Konvertieren.

Cross-Plattform Kona-Karten (nun auch für den PC), was früher die Xena-Karten waren, also IO-Devices für Premiere etc. unter Windows wird nun von den Kona Karten für beide Welten (also Mac und PC) übernommen. Nicht einfach nur eine weitere I/O Karte für den Mac und PC, nein, mit Features, die bisher nur bei der "großen" Kona 3 zu finden waren. Das heißt, nun auch mit HDMI I/O und 3G Unterstützung.
Bewährte Features der LHe Reihe wurden übernommen und mit aktueller Technik kombiniert. So bietet die Karte weiterhin die bekannte Hardware-Unterstützung für DVCProHD und HDV, die Dynamic RT Hardware Beschleunigung und die bekannte Kompatibilität mit Final Cut Studio und Quicktime-Anwendungen.

Hauptmerkmale

  • 3G/HD/SD SDI input/output
  • HDMI v1.3a w/Deep Color at 30 bits per pixel input/output
  • 12-bit HD analog component input/output
  • 12-bit SD analog component, composite, or S-Video input/output
  • 10-bit Hardware-based realtime up/down/cross-conversions
  • DVCPRO HD hardware acceleration
  • HDV hardware acceleration
  • Dynamic RT hardware acceleration
  • 2-ch balanced XLR AES digital audio and 2-ch balanced XLR analog audio input/output
  • 8-ch SDI embedded audio input/output
  • HD/SD Genlock and RS-422 machine control
  • LTC Input (on Reference input)
  • Support for Final Cut Studio applications, Adobe applications and more
  • Breakout cables standard, affordable breakout box optional

Technische Daten

Video Input

Digital
  • 3G/HD/SD SDI, SMPTE-259/292/296/424
  • HDMI v1.3, 30/36 bits/pixel,RGB or YUV, 2.25Gbps, SD,HD, 1080p50/60
Analog
  • Composite/S-Video (Y/C):NTSC, NTSCJ, PAL 12-bit A/D, 2x oversampling, 3 line adaptive comb filter decoding
  • SD Component: SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB 12-bit A/D, 2x oversampling
  • HD Component: YPbPr, 12-bit A/D
Videoformate
  • 525i 29.97
  • 625i 25
  • 720p 50
  • 720p 59.94
  • 720p 60
  • 1080i 25
  • 1080i 29.97
  • 1080i 30
  • 1080PsF 23.98
  • 1080PsF 24
  • 1080P 23.98
  • 1080P 24
  • 1080P 25
  • 1080P 29.97
  • 1080P 30
  • 1080P 50
  • 1080P 59.94
  • 1080P 60

Video Output

Digital
  • 3Gb SD and HD-SDI, SMPTE-259/292/296/424
  • HDMI v1.3, 30/36 bits/pixel,RGB or YUV, 2.25Gbps,
  • SD,HD, 1080p50/60
Analog
  • Composite/S-Video (Y/C): NTSC, NTSCJ, PAL, 12-bit D/A, 8x oversampling
  • •SD Component: SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB 12-bit D/A, 8x oversampling
  • •HD Component: YPbPr, RGB 12-bit D/A, 2x oversampling
Audio
  • Digital: 24-bit SDI embedded audio, 8 channel, 48kHz 24-bit AES audio, 2 channel, 48kHz 16-bit capable
  • Analog:
  • •24-bit A/D and D/A, 2 channel balanced XLR, 48kHz +24dbu Full Scale Digital +/- 0.2db 20 to 20kHz frequency response
Up-Conversion
  • Hardware 10-bit
  • Anamorphic: full-screen
  • Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
  • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
  • Zoom Letterbox: results in image zoomed to fill full screen
  • Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change
Down-Conversion
  • Hardware 10-bit
  • Anamorphic: full-screen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size
  • Cross-Conversion
  • Hardware 10-bit
  • 1080i to 720P
  • 720P to 1080i
  • 720P to 1080PsF
  • SD to SD Aspect Ratio Conversion
  • Letterbox: This transforms SD anamorphic material to a letterboxed image.
  • H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic
  • SD to full frame
  • SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
  • V Crop; Will transform SD letterbox material to an anamorphic image.
  • Reference Input
  • Color Black or Tri-level sync (Ref input is looping/non-terminating on the KLHi-Box; terminated on supplied breakout cable)
Machine Control RS-422, Sony 9-pin protocol
Kompatibilität Kompatibel mit Avid Media Composer 6, Symphony 6 und Newscutter 10

Garantie

  • 3 Jahre
