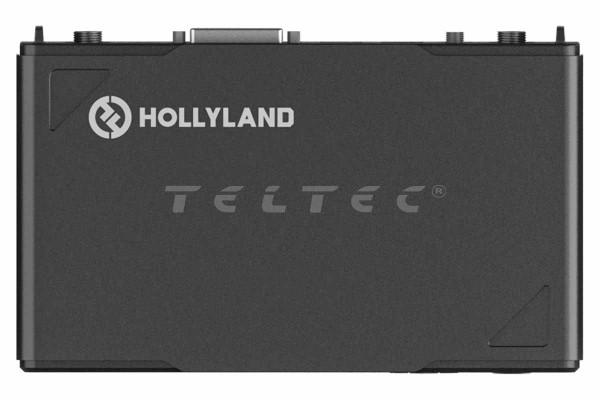

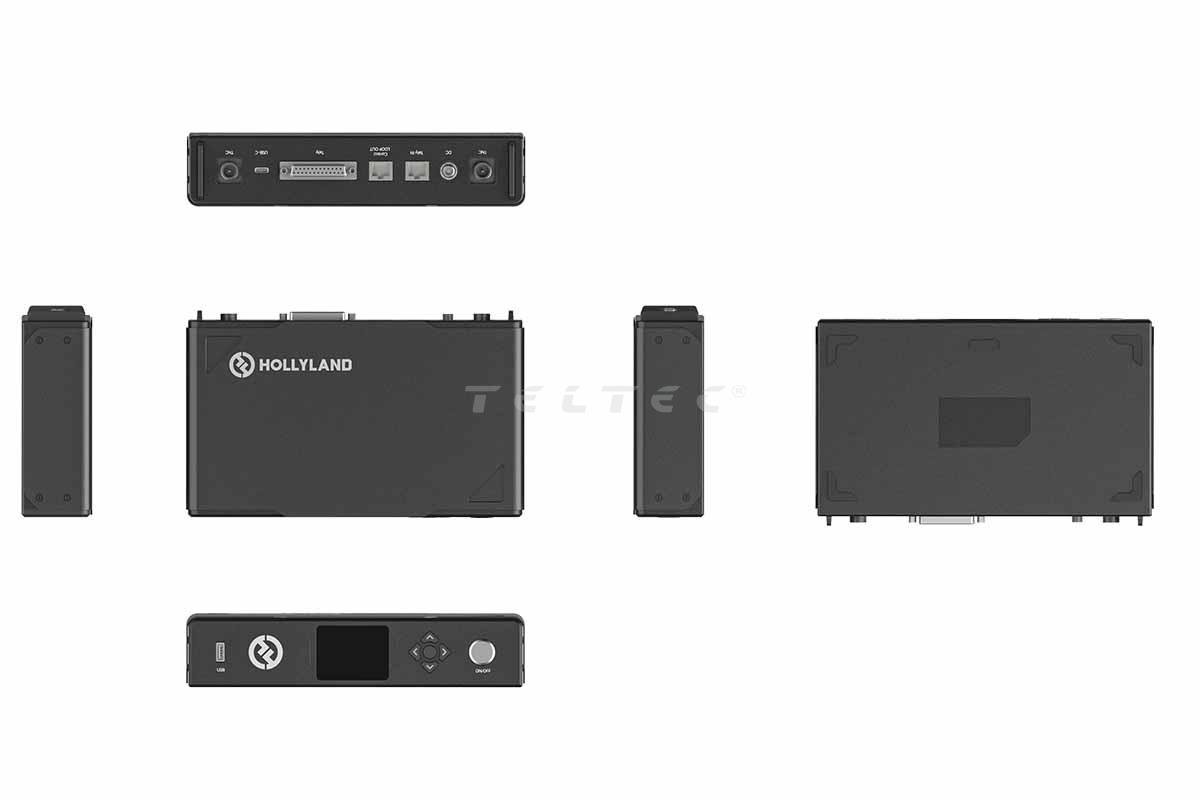

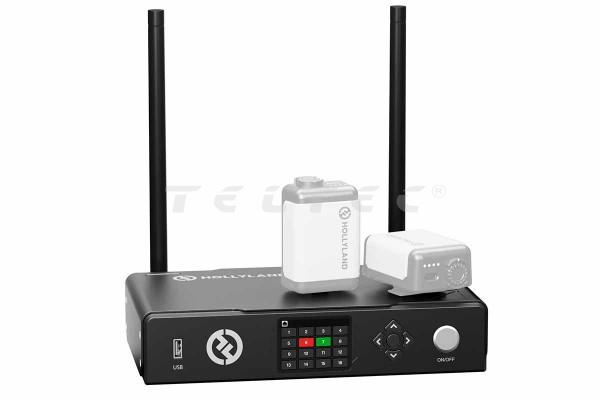

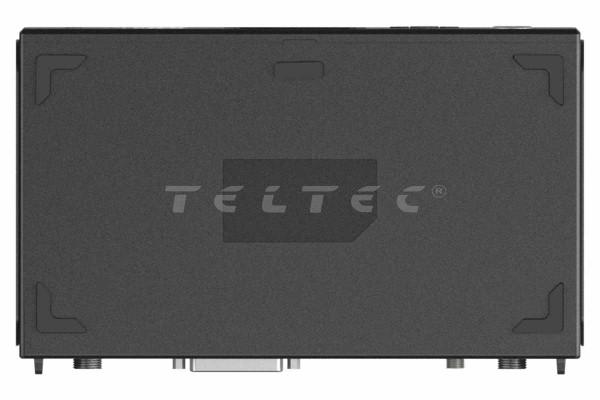

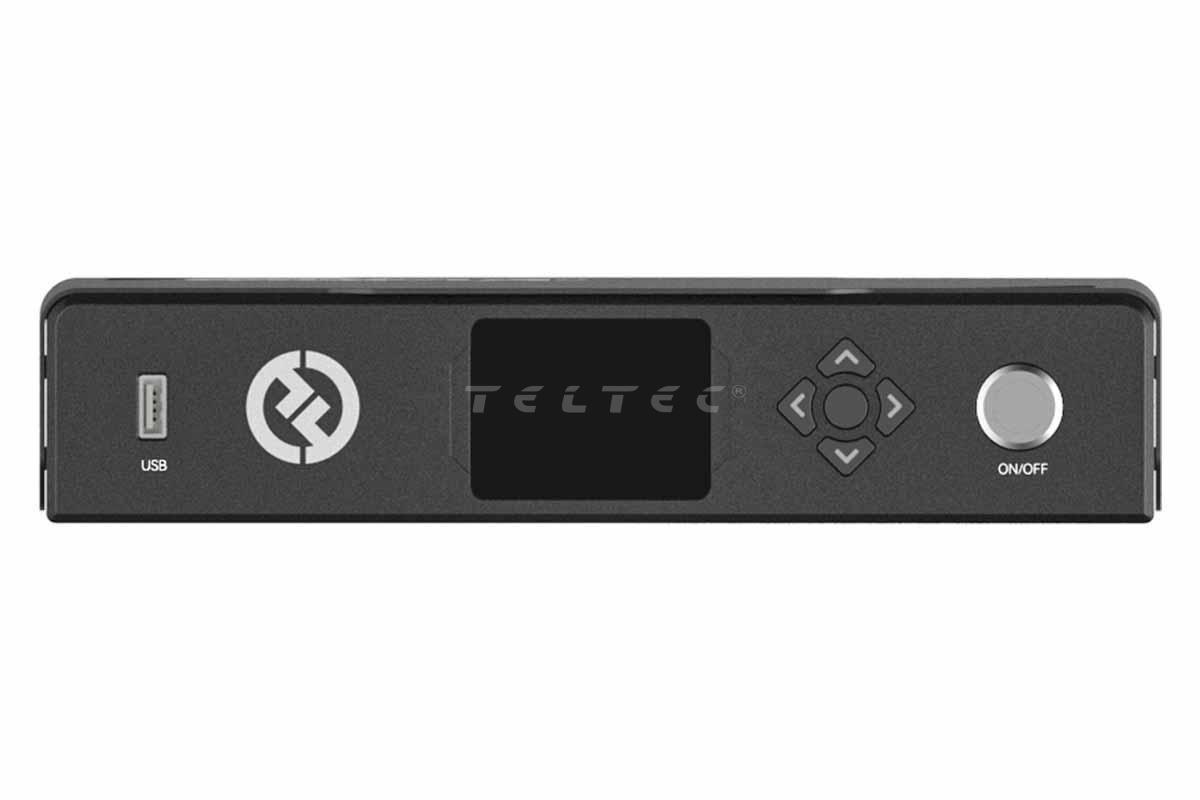

Hollyland Tally Station
bis zu 16 Dual Color Tally-Kanäle

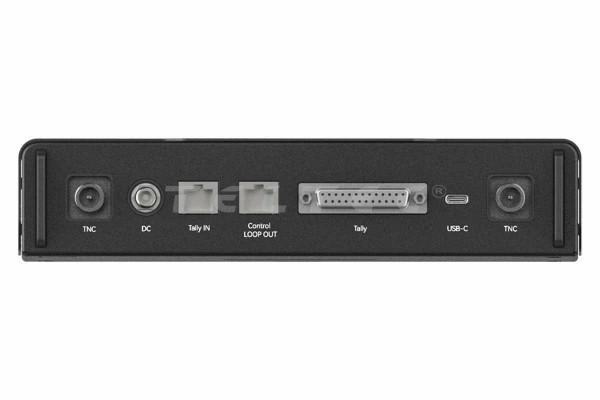

Die Hollyland Tally Station ist die Basis des Hollyland Wireless Tally Systems, die bis zu 16 Tally-Kanäle unterstützt und mit einer leistungsstarken Sequenz-Lernfunktion ausgestattet ist. Dabei wird eine adaptive Frequenz-Hopping-Techologie verwendet und eine Übertragungsreichweite von bis zu 800 m erreicht. Die Box bietet zwei TNC-Antennenanschlüsse und verfügt über die Schnittstellen: DB25-, RJ45- und USB-C.
Hauptmerkmale
- unterstützt bis zu 16 Dual Color Tally-Kanäle
- Smart Sequence Learning
- adaptives Frequenz-Hopping
- bis zu 800 m Übertragungsreichweite
- bis zu 8 h Akkulaufzeit
- kompaktes Design
Kompatibilität
Modell |
Erforderliches Kabel |
Datavideo SE2800 | Hollyland Tally-Kabel (DB25 Stecker auf DB25 Stecker) |
Datavideo HS1200 | Hollyland Tally-Kabel (DB25 Stecker auf HDB15 Buchse) |
Panasonic AV-HS6000MC | Hollyland Tally-Kabel (DB25 Stecker auf DB25 Stecker) |
Panasonic AV-HS410MC | Hollyland Tally-Kabel (DB25 Stecker auf DB15 Doppelstecker) |
Sony MCX-500 | Hollyland Tally-Kabel (DB25 Stecker auf DB9 Buchse) |
BMD ATEM Mini Pro | CAT-5-Kabel |
BMD ATEM Mini Extreme ISO | CAT-5-Kabel |
BMD ATEM 1 M/E Constellation HD | CAT-5-Kabel |
BMD ATEM Television Studio Pro 4K | CAT-5-Kabel |
BMD ATEM 1 M/E Production Studio 8K | CAT-5-Kabel |
Roland V-60HD | Hollyland Tally-Kabel (DB25 Stecker auf DB25 Stecker) |
Roland V-600UHD | Hollyland Tally-Kabel (DB25 Stecker auf DB25 Stecker) |
Roland V-800HD | Hollyland Tally-Kabel (DB25 Stecker auf HDB15 Doppelstecker) |
Roland V-1200HD | Hollyland Tally-Kabel (DB25 Stecker auf DB25 Stecker) |
vMix | Ethernet-Kabel |
DeviceWell HDS7305 | Hollyland Tally-Kabel (DB25 Stecker auf HDB15 Stecker) |

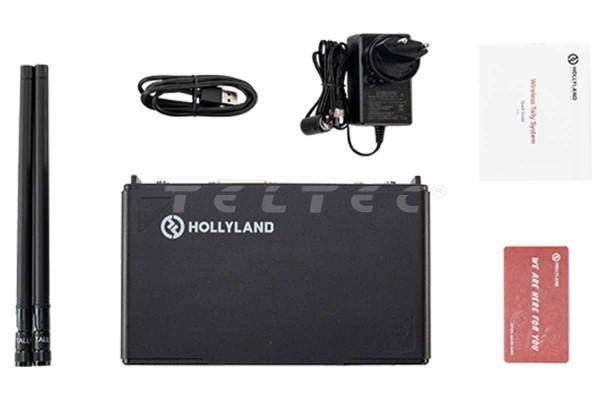

Lieferumfang
- 1x Hollyland Tally Station
- 2x DC-Netzteil
- 2x Drahtlose Tally-System-Antennen
- 1x USB-A-auf-USB-C-Kabel
Garantie
- 2 Jahre Herstellergarantie
Technische Daten
Sichtreichweite (LOS) | 800 m |
Betriebsfrequenz | 2,4 GHz |
Modulationsmodus | LoRa |
Empfänger-Empfindlichkeit | < -115 dBm |
Latenz | < 150 ms |
Akkulaufzeit | > 8 h |
Betriebstemperatur | 0 °C bis 45 °C |
Lagertemperatur | - 10 °C bis 60 °C |
Maße | 142,5 x 232,8 x 50,1 mm |
Gewicht | ca. 1,262 kg |
